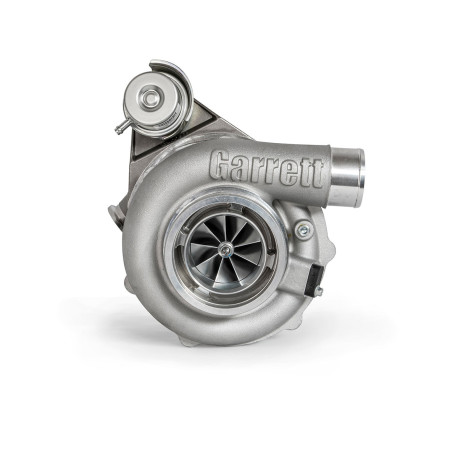

Garrett 880707-5003S Turbocharger G-Series G35-900, 1.01 A/R, Wastegated

Garrett G35-900 performance turbocharger with a wastegated V-Band turbine housing.

Please pay attention that maximum allowable turbocharger speed is 165krpm ( G series ) .

The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure.

Flange Speed Sensor G-Series ) must be fitted and monitored during fine and tune as well as with use of the unit. Missing of the sensors or RPM data will void  warranty on product.

Specifications

• Frame: G35
• Bearing: ball bearing
• Rotation: standard
• Compressor wheel: 62 mm inducer, 76 mm exducer, 65 trim, 0.72 A/R
• Turbine wheel: 68 mm inducer, 62 mm exducer, 84 trim, 1.01 A/R
• Turbine wheel material: MAR-M alloy
• Max shaft speed: 165 krpm
• Turbine housing flange: V-Band / V-Band
• Wastegate: internal (wastegated housing)
• Power: up to 900 HP
• Displacement: 2.0-5.5 L

Fits & compatible parts

• Related & compatible part numbers: 781328-0004

Features

• Product Features:
• New G Series compressor wheel aerodynamics
• Fully machined speed-sensor and pressure ports
• Standard and reverse rotation configurations available
• Oil restrictor and water fittings included
• One piece center housing and backplate for increased durability
• 4 water jacket ports for customizable installation
• Turbine wheel constructed of MAR-M alloy rated to 1055 °C
