Universal Dual Fan Mounting Kit (24V)

The Davies Craig Dual Fan Mounting Kit - Universal 24V includes all parts necessary for wiring one or two 24 volt Fans for both Davies Craig and other Electric Fan models.

Our range of Universal Fan & Transmission Oil Cooler mounting kits:

Part #1000: SINGLE FAN MOUNTING HARDWARE KIT (12V)

Part #1001: SINGLE FAN MOUNTING HARDWARE KIT (24V)

Part #1002: DUAL FAN MOUNTING KIT - UNIVERSAL (12V)

Part #1003: DUAL FAN MOUNTING KIT - UNIVERSAL (24V)

Part #0578: FAN & TRANS OIL COOLER MOUNTING HARDWARE (UNIVERSAL)

Part #0579: QUICK FIT KIT FOR FANS & TRANSMISSION OIL COOLERS

This kit is universal and can be used with 24V Thermal (Electric) / Condenser fans.

• This kit is designed for wiring twin fans when using the Davies, Craig #8002 controller or #0401, #0400, #0444, #0445, #0500 Mechanical Thermatic switch.
• This kit includes only the wiring required for duel fans installation.
• For mounting, you may require a #0422 (twin fan mounting bracket)

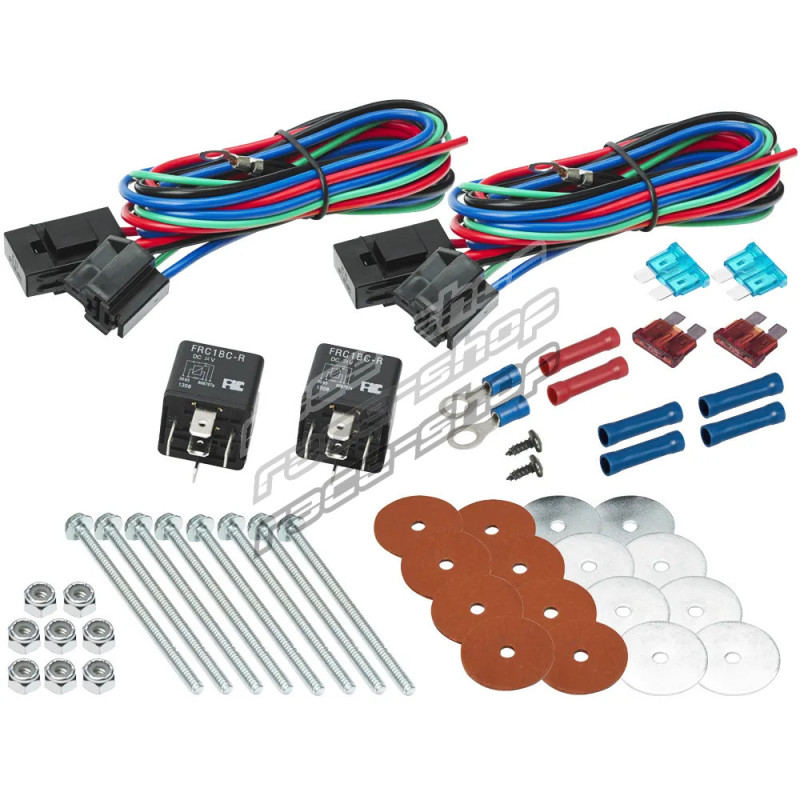

KIT CONTENTS

• Wiring Harness - Fans 12 & 24V: 2
• Relay 24V 40Amp with Resistor Protection: 2
• Fuse Wedge 15 AMP: 2
• Fuse Blade 7.5 AMP: 2
• Red Wire Joiner: 2
• Blue Wire Joiner: 4
• 6mm Eye Crimp Terminal (Blue): 2
• Screw Self Tap 8x3/8: 2
• Washer - Fibre Red: 8
• Washer Mudguard Silver: 8
• Nut Nyloc 3/16: 8
• Bolt Hex W/F 3x3/16: 8
• Universal Fan Hardware Kit Instructions: 1

MOUNTING YOUR ELECTRIC FAN

Please pay particular attention to the markings on the fan hub/blade regarding the direction the fan should operate as Davies Craig Electric Fans are reversible. Once the fan is installed the arrow may not be visible.

The Thermatic Fan fitting instructions must be closely followed, regardless of whether the unit is mounted upstream or downstream.

• FAN SIZE: 8 “ 9” 10” 12” 14”; VOLTAGE: 12V; RECOMMENDED FUSE (AMPS): 15A
• FAN SIZE: 14”HP & 16”; VOLTAGE: 12V; RECOMMENDED FUSE (AMPS): 30A
• FAN SIZE: 8 “ 9” 10” 12” 14”; VOLTAGE: 24V; RECOMMENDED FUSE (AMPS): 7.5A
• FAN SIZE: 14”HP & 16"; VOLTAGE: 24V; RECOMMENDED FUSE (AMPS): 15A

If you wish to thematically control the electric fan(s) you should purchase a Davies, Craig Thermatic Switch Kit, Part: #0401, #0400 Combo Kit or a Twin Fan Thermatic Controller Part, #0444, #0445 or #0500 .

If you wish to cool both the radiator and AC condenser you should purchase Part #0444, #0445, #0500 or a Thermatic Switch & Relay Kit, Part #0404 - which contains the Thermatic Switch with an extra relay and wiring loom.
