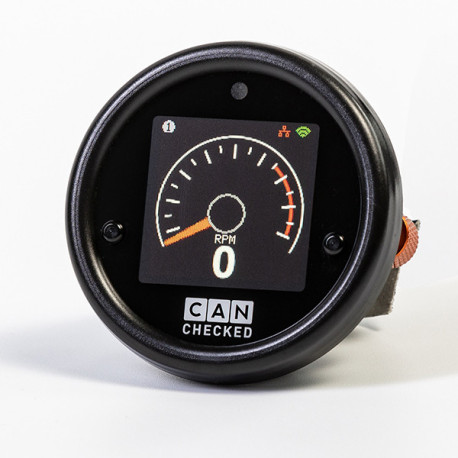

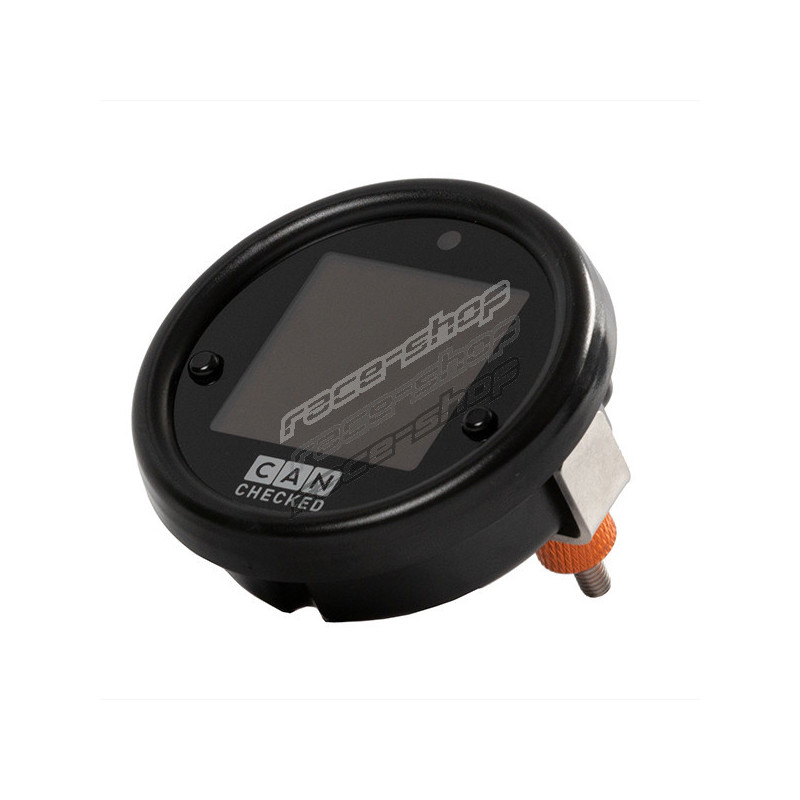

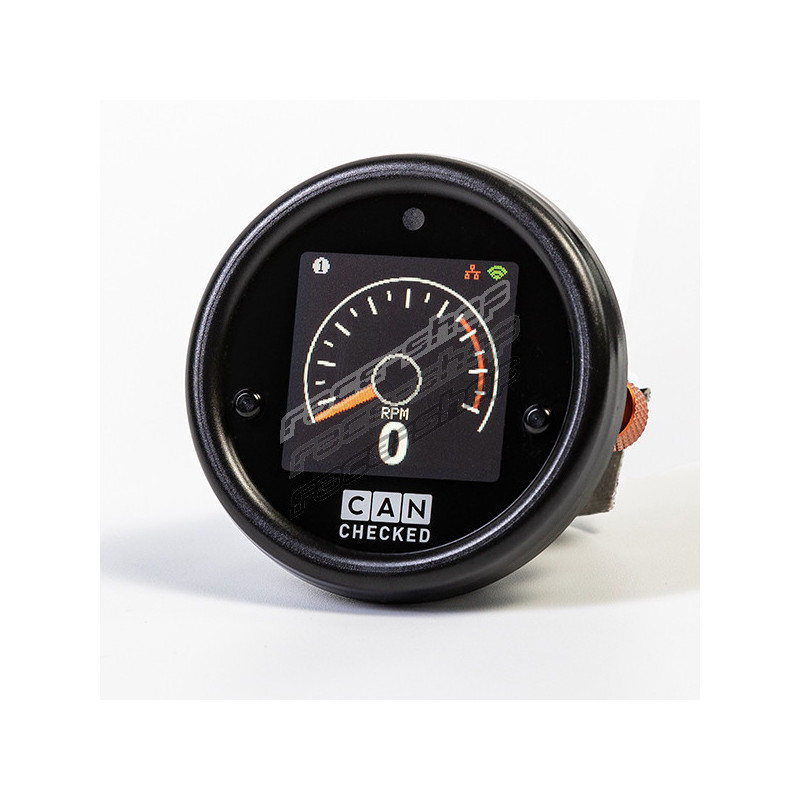

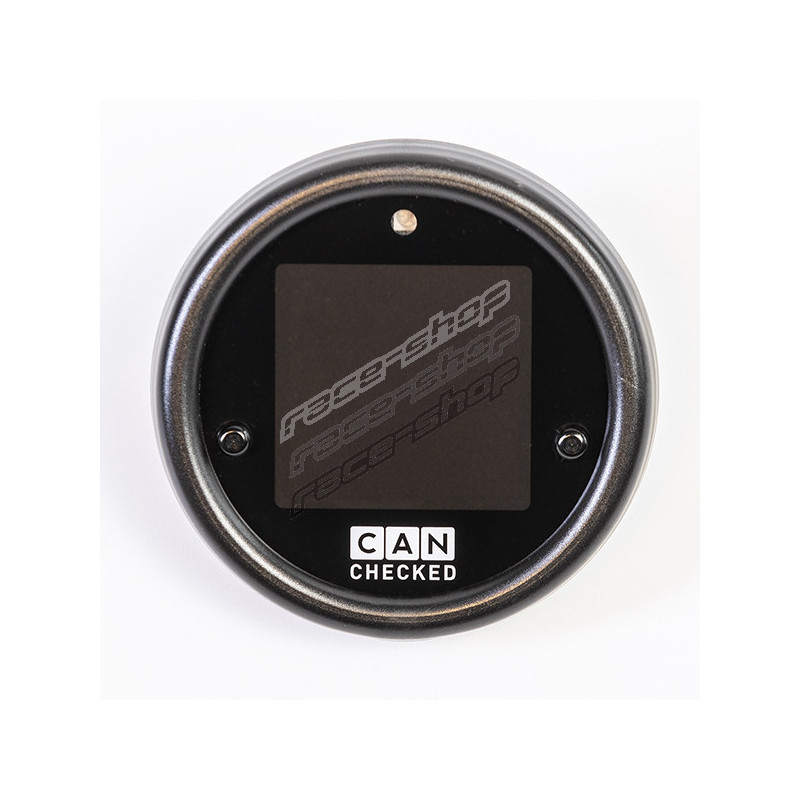

CANchecked display MFD15 Gen2

The MFD15 Gen2 is equipped with an OLED screen, which offers

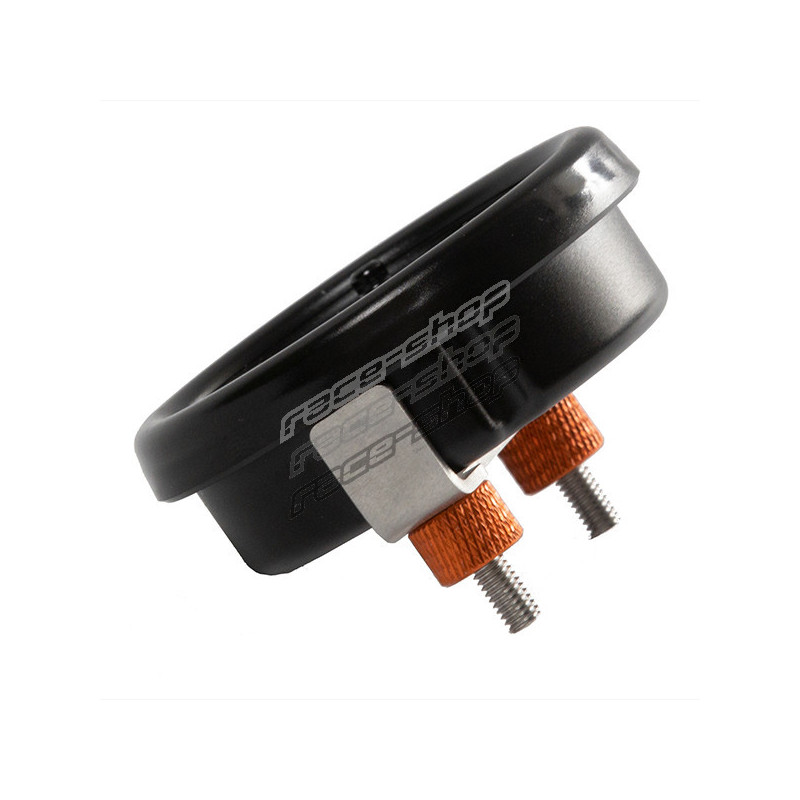

best readability even in direct sunlight. The outer diameter of 52 mm fits our vehicle-specific holder as well as
most commercially available bezels за
interior. It is operated with
two push buttons on
faceplate or with
separately available rotary knob.

• Compact design: 52 mm in diameter и only 12.5 mm deep
• Faceplate-mounted LED: The LED on
  front of
  display can be used as a shift light and/or as a warning LED
• Can Bus: Support of Can Bus ECUs, own Can streams и from 2008 on OBD2 и deep values за VAG-cars
• WiFi: connect към your smartphone or PC и configure it using our Web App
• Additional inputs: connect up към 6 analog sensors към
  inputs or connect an ethanol sensor* directly към
  display
• Preset Alarms: predefined alarms can be easily activated и customized. For example, get a big alert when
  exhaust gas temperature is above 900 degrees.
• Customization: Use your own startup logo и color scheme към make it your MFD15 Gen2
• Online logging*: Log your data with your smartphone or PC и save
  log към your device за later analysis
• Flex Fuel*: View ethanol content и temperature on your display
• Can Switching*: Switch can switches using
  buttons on your display и forward
  readings from your analog inputs към
  can bus

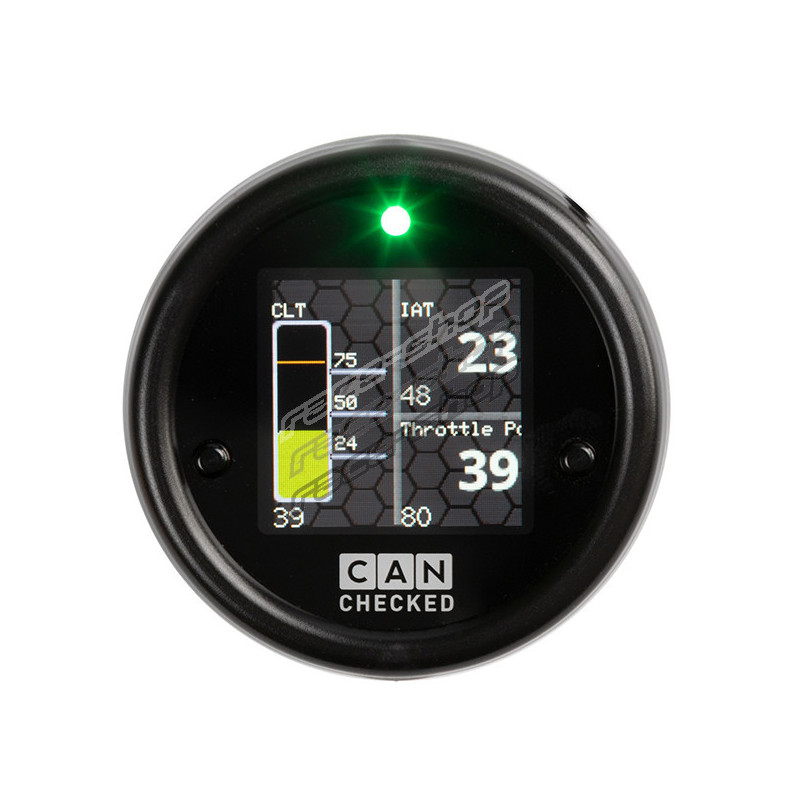

Choose up към eight pages of different views и customize your display към best suit you и your vehicle:

• Analog pointer
• Double value
• Gear indicator
• 4-fold values
• 6-fold values
• Bar + double display
• Round display
• Bar graph (double across)
• Performance Meter
• Bar chart (1-6-fold upright)
• Single value

Brand new with our MFD15 Gen2 is access към
device via WiFi. So you can set up
MFD15 Gen2 via smartphone or PC.

With
oDSS you can set your display completely, log values (license required), upload your own startup image и also update
display.

A popular customer question is: "Which values can I request from my ECU". The answer: "ALL" - your new MFD15 Gen2 is compatible with ISO 11898-2 и SAE J2284.

The ECU manufacturers themselves determine which values are sent via
CAN bus interface. Here
documentation is important - possibly even in
form of a DBC file that can be imported via our DSS. Of course, as a customer, you can access our extensive list of already implemented ECUs. In total, depending on
manufacturer, up към 64 sensors can be queried.

Of course, OBD2 queries via Can Bus (11bit/29bit) are also implemented. Vehicle specific protocols like UDS or TP2 are also available.

Included by default are:
- OBD2 - 11 и 29bit
- Ecumaster - Classic и Black
- VAG PQ34
- Haltech v2
- LinkECU
- MaxxECU
- Motec M1
- Emtron
- Megasquirt 2 и 3

If
desired ECU is not listed, you can download or request
appropriate TRI/TRX from our database.

For all VAG-cars from year of manufacture 2008 (in individual cases also older) we offer in-depth data queries by protocol. Values like oil temperature, boost pressure, transmission temperature, cylinder selective ignition angle return, high/low pressure, wastegate actuation и much more can be queried и displayed.

The internal LED can be used as a shift light as well as a warning LED.

As a shift light you can assign up към 8 different colors и speed limits as well as
speed at which
shift light starts към flash.

When configuring as a warning LED, you can assign a minimum и maximum value за each sensor. If
sensor is above
maximum value or below
minimum value,
LED flashes in
previously configured colour. The shift light is deactivated during
warning period.

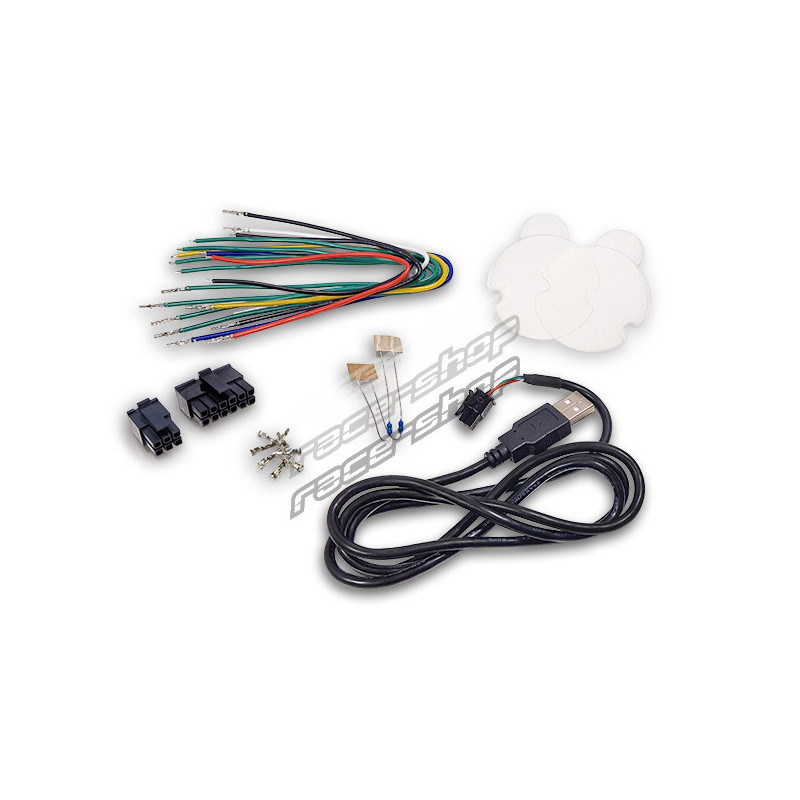

Included with every delivery:

• MFD15 Gen2 Datadisplay
• Quickstart Guide
• Connector B (6-way Molex)
• Connector C (12-way Molex)
• Different coloured pre-assembled connection cables (length: 20 cm, intended use: power supply, Can Bus, analogue inputs, 5V, sensor ground)
• pins към crimp by yourself
• two 1K resistors (as pullup of NTC sensors)

Any sensors can be connected via
six analog inputs - we support linear 0-5V as well as NTC sensors.

The characteristic curves of our in-house CANchecked sensors are stored in
display by factory default и work plug&play:

• AIN1: Temperature sensor (NTC01)
• AIN2: Transducer за exhaust gas temperature probe type K (TCC01)
• AIN3: Pressure sensor 0-10 bar (FLP01)
• AIN4: boost pressure sensor 0-5,5 Bar absolute (BST01)
• AIN5: not preconfigured
• AIN6: not preconfigured

For
connection you can use our pre-assembled 4-way AIN harness.

If you have
appropriate license* you can additionally connect an ethanol sensor directly към
display via a separate pin.

• CC22501 ETK01 - external rotary knob with PnP 50 cm connection cable
• CC22100 CBD08 - eight-way Can Distribution Hub
• CC22780 ANC04 - four-way AIN-harness
• CC22902 NTC01 - temperature sensor за liquids 1/8" NPT
• CC22903 TCC01 - type K transducer 0-1250°C
• CC22901 FLP01 - Pressure sensor 0-10 Bar (145psi) M10x1
• CC22900 BST01 - Pressure sensor 0-5,5 Bar absolute (80psi)

Live Logging of
MFD15 Gen2

With
additional license "Live Logging", your display can log
data of
sensors into
oDSS. Then you can download
log as a file към your smartphone or PC.

All sensors are logged in
log (ATTENTION: за OBD и UDS only
currently displayed ones!). Select
sensors you want към display graphically.

Flex Fuel Ethanol Sensor directly on
MFD15 Gen2

With
additional license за
ethanol sensor, you connect
sensor directly към
display. You need a pullup resistor (10K) between 5V и
signal.
Now you can see
ethanol content as well as
fuel temperature и also log it.

Can Switching и AIN forwarding

With
additional license за Can Switching и AIN forwarding you can use
keys of your display or
rotary knob към switch Can Switches и apply
input voltages of your analog inputs към
Can Bus.
