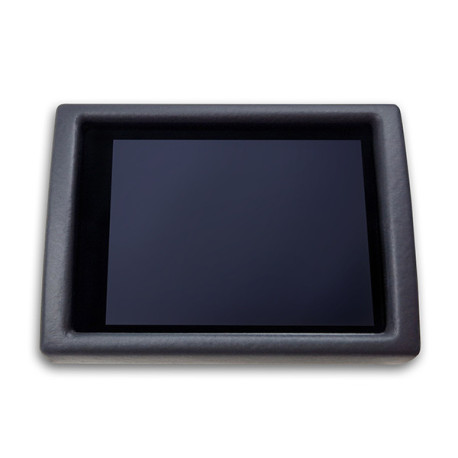

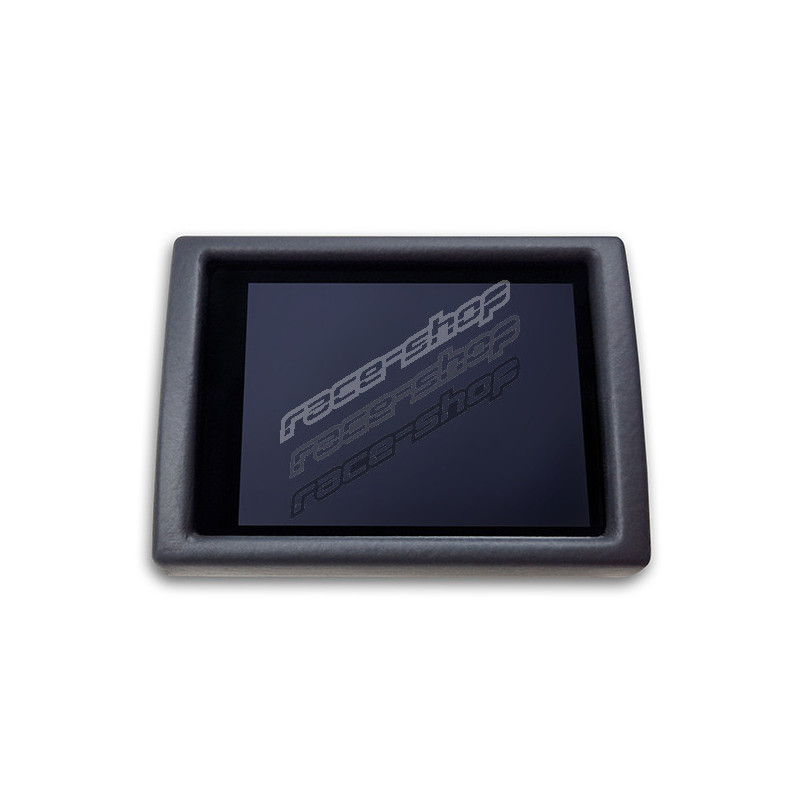

CANchecked air vent display Audi 100 C3 LHD/RHD MFD28 Gen2

The MFD28 Gen2 transforms your air vent into an intelligent display с features you don't want към miss. Нашите дисплеи са проектирани така, че да могат да бъдат инсталирани от всеки.. For most displays there are illustrated installation instructions, so you can install your display yourself without
need of any workshop.

• Perfect integration: Специфичен bezel still allows airflow past
  display
• Can Bus: Четене на задълбочени данни за превозното средство, като диагностични инструменти на производителя
• Показване на скоростите: Директно чрез Can Bus или изчислено от скорост и обороти в минута
• Сензорен екран: Навигирайте през страници с помощта на интуитивни жестове с плъзгане
• Персонализиране: Проектирайте свои собствени страници, добавете свои собствени снимки или започнете анимация
• Additional inputs: Connect up към 4 analog inputs и an ethanol sensor directly към
  display
• Can Switching: Use your display as a keypad и send your own can messages към
  bus
• Customizable Alarms: Customizable alarms can be easily configured и activated. For example, get a big warning message when
  exhaust gas temperature is above 900 degrees
• Logging: Log и save your data към
  internal SD card за later analysis.
• Performance Meter: Measure your 0-100, 100-200 и 0-200 times с
  integrated performance meter without any additional hardware.
• DTC*: Read и clear
  errors of engine control unit, transmission, ABS и all-wheel drive
• Dimming*: Your display automatically dims along с
  instrument panel

Конфигурирайте своя собствена страница или изберете от няколко предварително дефинирани изгледа:

• Дисплеят се доставя с предварително зададени примерни страници.
• Възможно и желано създаване на собствени страници
• Възможни са до десет страници
• 20 different widget types (e.g. sensor value, analogue pointer, YT diagram, speed bar, round display, vertical/horizontal bar)
• Widgets can be scaled in size и positioned using drag и drop
• Colours of
  widgets fully adjustable
• Up към 64 widgets per page

With
CANchecked DSS you can fully customize your display. With
integrated log viewer you can download и view log files. Furthermore, a Can-Logger is integrated. The heart is
integrated TRI Editor с which you can adjust
sensors (no matter if Can Bus or internal): Assign min-/max-values за warnings и change
names of your sensors.

Many customers always ask: Which values can I get from my ECU. The answer: ALL.

We have reverse-engineered
data за most двигатели here и can offer in-depth data. Нашите display supports Can Bus data query (UDS, TP2, manufacturer specific protocols) as well as data query via K-Line (ISO 9141).

By default, your display is delivered с predefined TRI/TRX files. In
files, all sensors are defined, which are queried. These are different from engine към engine. Here is an extract of what is possible:

Temperatures:

• Exhaust temperature, coolant temperature, oil temperature, intake temperature, outside temperature, gasoline temperature, DSG-temperature.

Pressures:

• Boost pressure, ambient pressure, fuel pressure pre-feed pump, rail pressure actual/target.

Lambda/mixture

• Lambda value, injection time, short term lambda adjustment, long term lambda adjustment

Other

• RPM, air mass, vehicle speed, throttle angle, total ignition angle, ignition angle retraction per cylinder, N75 timing in %, terminal 30 voltage, torque, gear, diesel specific values

If values are missing, they can be added later.

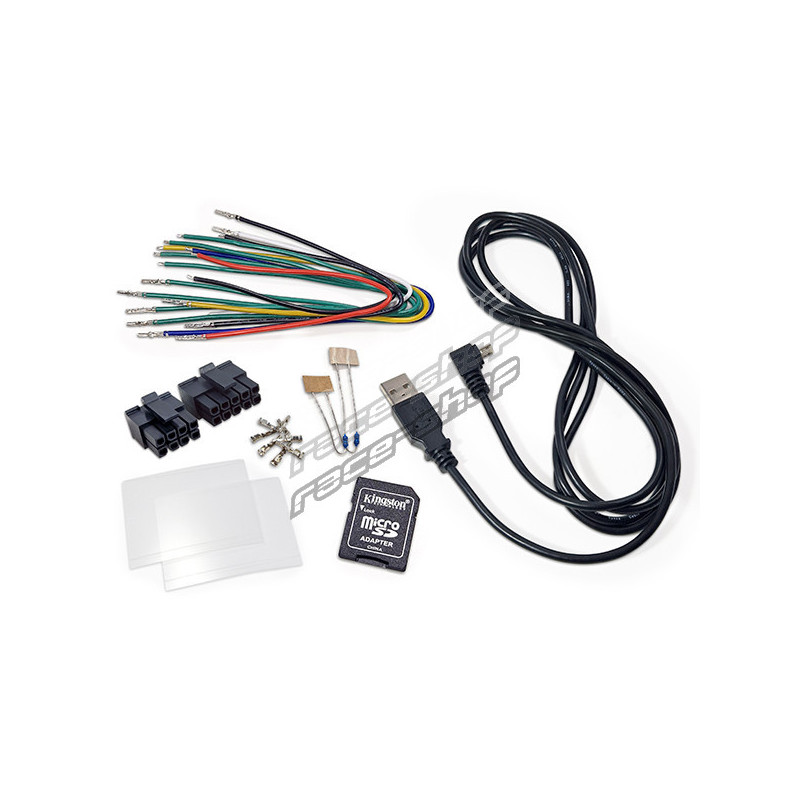

Included с every delivery

• MFD28 Gen2 data display integrated in
  ventilation insert за LHD&RHD vehicles

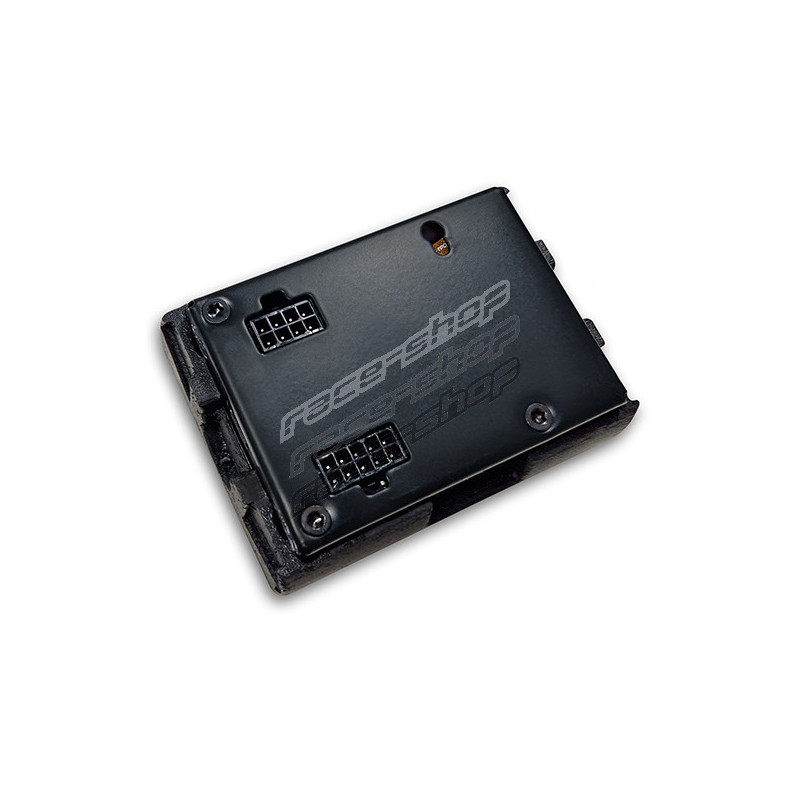

• Connector A (8-way Molex)
• Connector B (10-way Molex)
• Different coloured pre-assembled connection cables (length: 20 cm, intended use: power supply, Can Bus, analogue inputs, 5V, sensor ground)
• Pins за crimping yourself
• Two 1K resistors (as pull-up за connecting external NTC sensors)
• Quickstart Guide
• USB data cable
• SD card (pre-installed към
  display)
• SD card adapter
• Display foil (to prevent reflections)

Any sensors can be connected via
four analog inputs - we support linear 0-5V as well as NTC sensors.
Нашите in-house CANchecked sensors are stored in
TRI-/TRX-files by default и only need към be connected:

• AIN1: Temperature sensor (NTC01)
• AIN2: Transducer за exhaust gas temperature sensor type K (TCC01)
• AIN3: Pressure sensor 0-10 Bar (FLP01)
• AIN4: boost pressure sensor 0-5,5 Bar absolute (BST01)

For
connection you can use our pre-assembled AIN wiring harness.

Beside
analog sensors you can also connect our external shift light с eight LEDs. This can flash in different colors и
speed limits и colors can be configured directly on
display.

You connect
ethanol sensor directly към
display. You need a pullup resistor (10K) between 5V и
signal. Then you can view и log
ethanol content и temperature directly on
display.

With
Math-Channels you can calculate sensors с each other. The User-Table gives you
possibility към generate further sensors с 2D or 3D maps.

• CC24000 SLM08 - external switching lightning module
• CC22780 ANC04 - four-way AIN-harness
• CC22100 CBD08 - eight-way Can Distribution Hub
• CC22902 NTC01 - temperature sensor за liquids 1/ inch" NPT
• CC22903 TCC01 - type K converter 0-1250°C
• CC22901 FLP01 - Pressure sensor 0-10 Bar (145psi) M10x1
• CC22900 BST01 - Pressure sensor 0-5,5 Bar absolute (80psi)

*not available on all protocols
