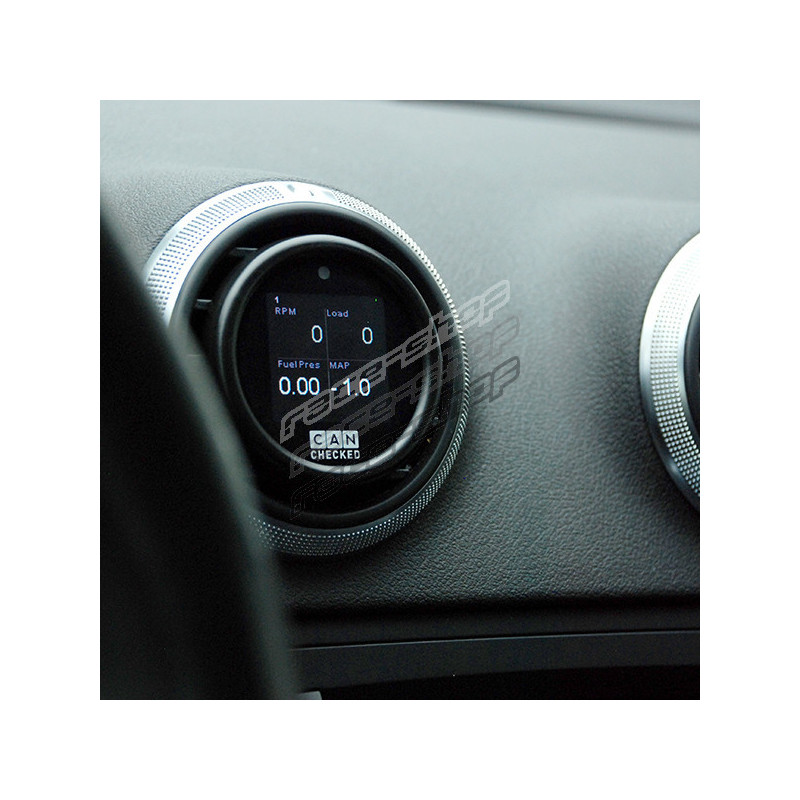

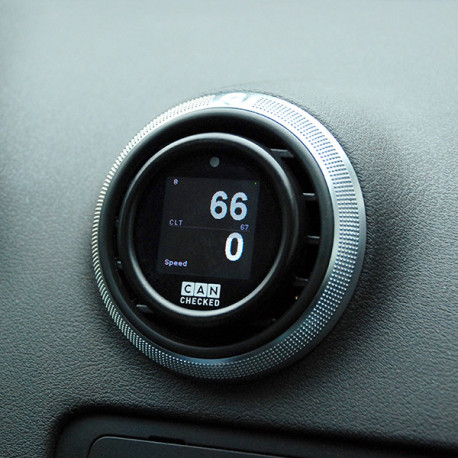

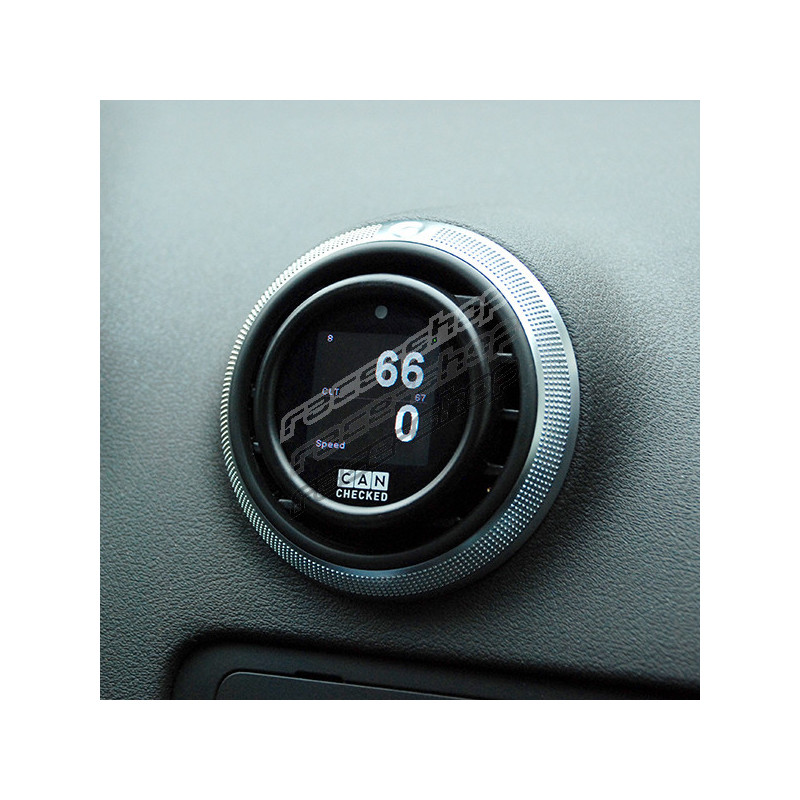

CANchecked display Audi TT 8J LHD MFD15 Gen2

The MFD15 Gen2 is equipped с an OLED screen, which offers best readability even in direct sunlight. This Комплект is supplied с a vehicle-specific bezel и a connection Комплект. It is operated using
two push buttons on
faceplate. You can also connect our optional rotary knob.

• Compact design: 52 mm in diameter и only 12.5 mm deep
• Faceplate-mounted LED: The LED on
  front of
  display can be used as a shift light and/or as a warning LED
• Can Bus: Support of Can Bus ECUs, own Can streams и from 2008 on OBD2 и deep values за VAG-cars
• WiFi: connect към your smartphone or PC и configure it using our Web App
• Additional inputs: connect up към 6 analog sensors към
  inputs or connect an ethanol sensor* directly към
  display
• Preset Alarms: predefined alarms can be easily activated и customized. For example, get a big alert when
  exhaust gas temperature is above 900 degrees.
• Customization: Use your own startup logo и color scheme към make it your MFD15 Gen2
• Online logging*: Log your data с your smartphone or PC и save
  log към your device за later analysis
• Flex Fuel*: View ethanol content и temperature on your display
• Can Switching*: Switch can switches using
  buttons on your display и forward
  readings from your analog inputs към
  can bus

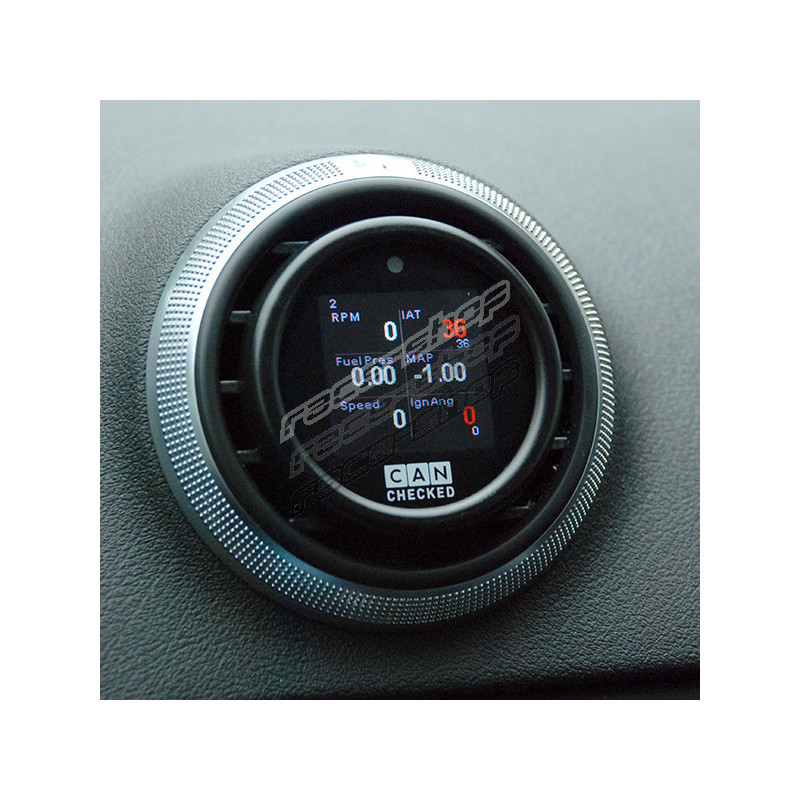

Choose up към eight pages of different views и customize your display към best suit you и your vehicle:

• Analog pointer
• Double value
• Gear indicator
• 4-fold values
• 6-fold values
• Bar + double display
• Round display
• Bar graph (double across)
• Performance Meter
• Bar chart (1-6-fold upright)
• Single value

Brand new с our MFD15 Gen2 is access към
device via WiFi. So you can set up
MFD15 Gen2 via smartphone or PC.

с
oDSS you can set your display completely, log values (license required), upload your own startup image и also update
display.

A popular customer question is: Which values can I request from my ECU. The answer: ALL - your new MFD15 Gen2 is compatible с ISO 11898-2 и SAE J2284.

The ECU manufacturers themselves determine which values are sent via
CAN bus interface. Here
documentation is important - possibly even in
form of a DBC file that can be imported via our DSS. Of course, as a customer, you can access our extensive list of already implemented ECUs. In total, depending on
manufacturer, up към 64 sensors can be queried.

Of course, OBD2 queries via Can Bus (11bit/29bit) are also implemented. Vehicle specific protocols like UDS or TP2 are also available.

Included by default are:
- OBD2 - 11 и 29bit
- Ecumaster - Classic и Black
- VAG PQ34
- Haltech v2
- LinkECU
- MaxxECU
- Motec M1
- Emtron
- Megasquirt 2 и 3

If
desired ECU is not listed, you can download or request
appropriate TRI/TRX from our database.

For all VAG-cars from year of manufacture 2008 (in individual cases also older) we offer in-depth data queries by protocol. Values like oil temperature, boost pressure, transmission temperature, cylinder selective ignition angle return, high/low pressure, wastegate actuation и much more can be queried и displayed.

The internal LED can be used as a shift light as well as a warning LED.

As a shift light you can assign up към 8 different colors и speed limits as well as
speed at which
shift light starts към flash.

When configuring as a warning LED, you can assign a minimum и maximum value за each sensor. If
sensor is above
maximum value or below
minimum value,
LED flashes in
previously configured colour. The shift light is deactivated during
warning period.

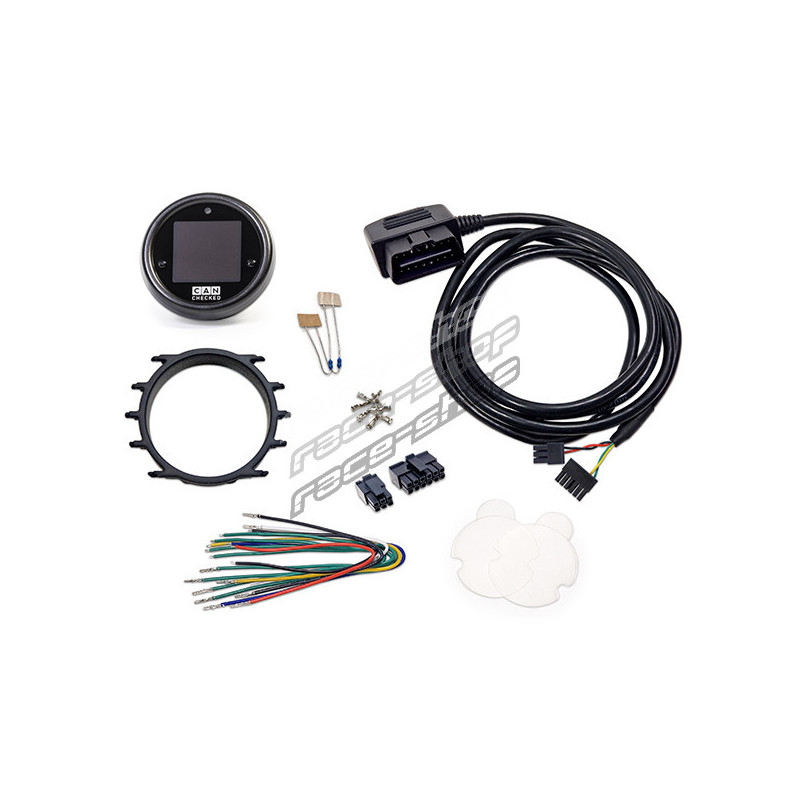

Включен с всяка доставка:

• MFD15 Gen2 Datadisplay
• Vehicle-specific bezel за LHD vehicles
• Vehicle-specific connection cable
• Ръководство за бърз старт
• Connector B (6-way Molex)
• Connector C (12-way Molex)
• Different coloured pre-assembled connection cables (length: 20 cm, intended use: power supply, Can Bus, analogue inputs, 5V, sensor ground)
• pins към crimp by yourself
• two 1K resistors (as pullup of NTC sensors)

Any sensors can be connected via
six analog inputs - we support linear 0-5V as well as NTC sensors.

The characteristic curves of our in-house CANchecked sensors are stored in
display by factory default и work plug и play:

• AIN1: Сензор за температура (NTC01)
• AIN2: Transducer за exhaust gas temperature probe type K (TCC01)
• AIN3: Сензор за налягане 0-10 bar (FLP01)
• AIN4: сензор за налягане при усилване 0-5,5 Абсолютна стойност (BST01)
• AIN5: not preconfigured
• AIN6: not preconfigured

For
connection you can use our pre-assembled 4-way AIN harness.

If you have
appropriate license* you can additionally connect an ethanol sensor directly към
display via a separate pin.

• CC22501 ETK01 - external rotary knob с PnP 50 cm connection cable
• CC22100 CBD08 - осемпосочен разпределителен хъб за кутии
• CC22780 ANC04 - четирипосочен AIN-harness
• CC22902 NTC01 - температурен датчик за течност 1/8 inch NPT
• CC22903 TCC01 - type K transducer 0-1250°C
• CC22901 FLP01 - Сензор за налягане 0-10 Bar (145psi) M10x1
• CC22900 BST01 - Сензор за налягане 0-5,5 Абсолютна стойност (80psi)

Live Logging of
MFD15 Gen2

с
additional license "Live Logging", your display can log
data of
sensors into
oDSS. Then you can download
log as a file към your smartphone or PC.

All sensors are logged in
log (ATTENTION: за OBD и UDS only
currently displayed ones!). Select
sensors you want към display graphically.

Flex Fuel Ethanol Sensor directly on
MFD15 Gen2

с
additional license за
ethanol sensor, you connect
sensor directly към
display. You need a pullup resistor (10K) between 5V и
signal.
Now you can see
ethanol content as well as
fuel temperature и also log it.

Can Switching и AIN forwarding

с
additional license за Can Switching и AIN forwarding you can use
keys of your display or
rotary knob към switch Can Switches и apply
input voltages of your analog inputs към
Can Bus.
