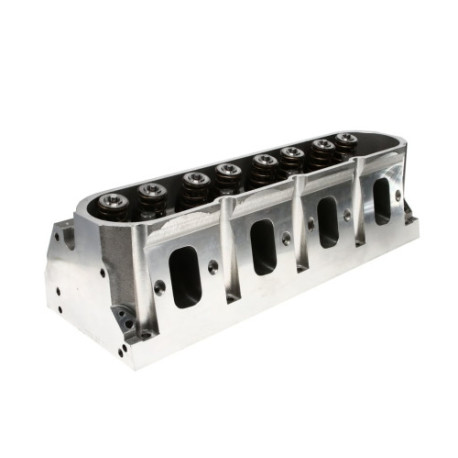

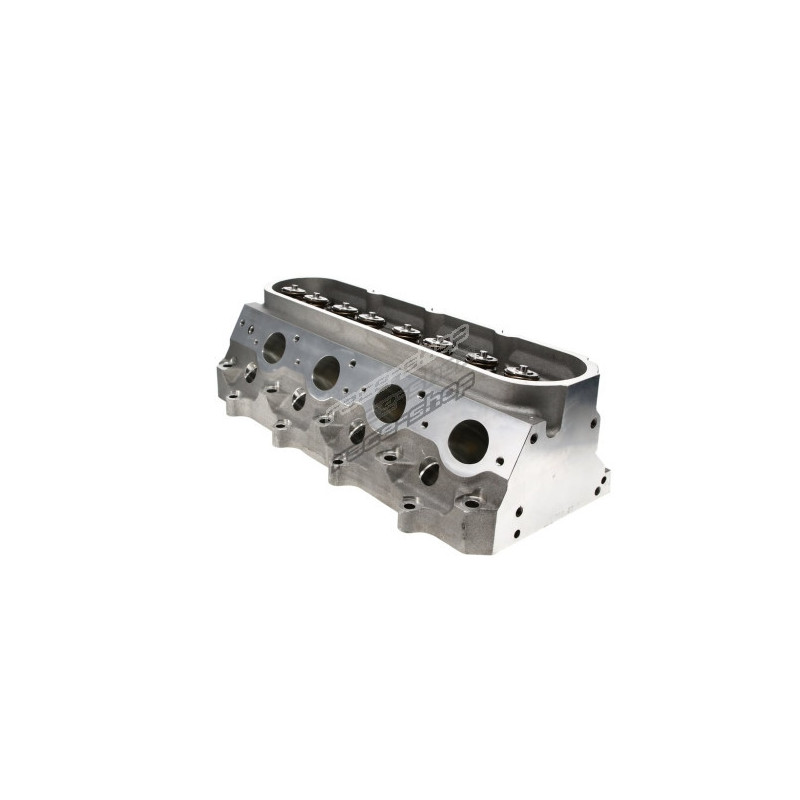

DART 11061183 Pro1 Chevrolet LS Gen III Head – 285.00 CC Port, 66.00 CC Chamber

Recommended for engines with 4.000 inch bore or larger. Maximum competition, comp/modified drag racing, circle track, and heavy duty applications. Dart’s LS based PRO1 LS 15 Deg 280cc Aluminum rectangle port cylinder head (LS3 compatible) for GM LS series small block V8 engines take performance to the next level. Offers higher performance and more versatility than factory designs. The 15 Deg based high performance cylinder head has better airflow, more efficient combustion chambers and more user friendly features than production LS castings. The Dart PRO1 280cc cylinder head retains stock valve angles, stock valve locations and stock accessory mounting holes to make installation easy. Virtually everything else has been improved.
Heads are sold individually

• Industry: Automotive
• CNC Ported: Yes
• Combustion Chamber Volume: 66.00 CC
• Exhaust Valve Diameter: 1.625 IN
• Intake Valve Diameter: 2.200 IN
• Material: RMR Cast Aluminum Alloy
• Port Volume: 285.00 CC
• Valve Angle: 12 DD
• Valve Spring Diameter: 1.290 IN
• Valve Spring Maximum Lift: 0.650 IN
• Engine Type: ICE
• Product Type: Engine Cylinder Head
• Make - Web: Chevrolet
• Engine - Web: LS Gen III
• Emissions Code: 3
