Universal THOR Storm electronic exhaust system - basic kit

This THOR kit is a basic electronic exhaust system kit featuring a powerful STORM speaker housed in a high-strength plastic spherical enclosure. It delivers the effect of a real exhaust without excessive aggression — deep, smooth sound that’s enjoyable every day. Gives the impression of a powerful engine under the hood. The system is perfectly suited for vehicles from 2005 onwards. Controlled via a mobile app.

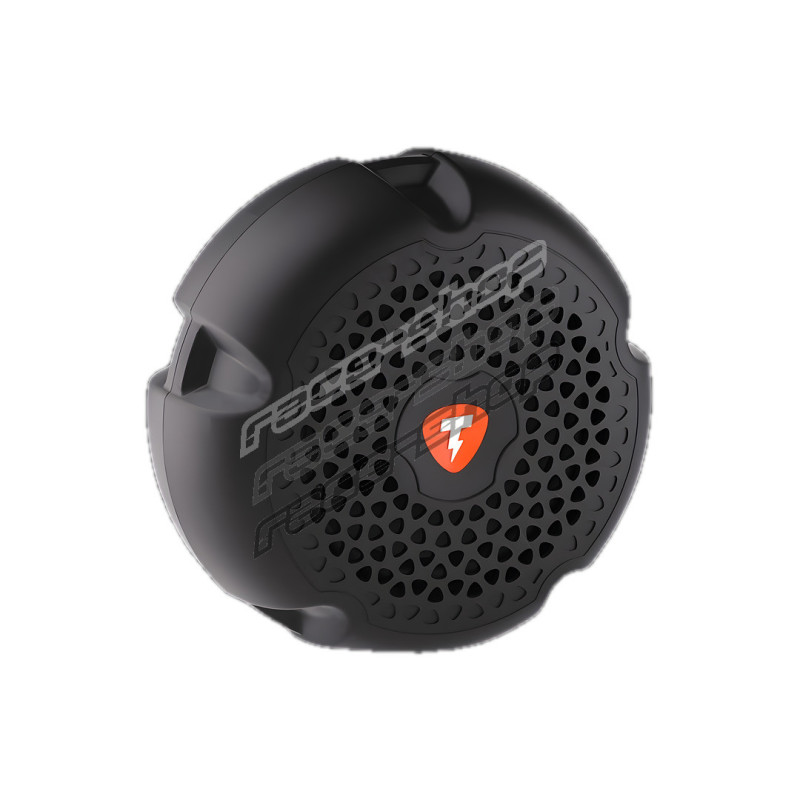

Thor STORM loudspeaker specification:

• Heavy duty plastic loud speaker
• The loud speaker simulates a large volume engine
• Partly covers the standard engine tone (especially on diesel applications)
• No exhaust system can reach such sound (especially on diesel applications)
• Classic sounds recorded only from real vehicles
• Dimensions: 11,7 x 11,7 x 21,4 cm
• Resonance frequency: 56 Hz
• Frequency range: 70-11000 Hz
• Impedance: 2 Om
• Sensitivity: 87 dB
• Rated power: 41 W
• Max power: 95 W
• Amplifier compability: THOR ECU V6.x.x. and later

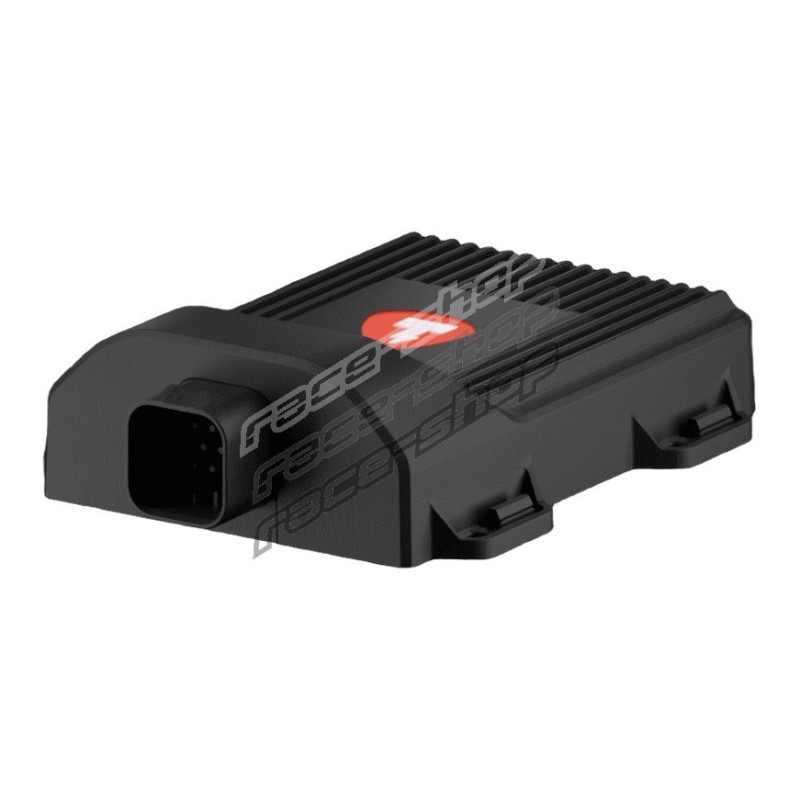

Thor Control unit specification:

• Communication range via the BLE interface
• Sound amplifier power: up to 85W
• Current consumption: 5 A
• Amplifier efficiency: more than 90%
• Device power supply: from 10 to 30 V
• Supported CAN exchange rates (kBit/s): 125, 250, 500, 1000.
• Supported smartphone OS versions: iOS at least 10; Android at least 5.

Control and profile settings:

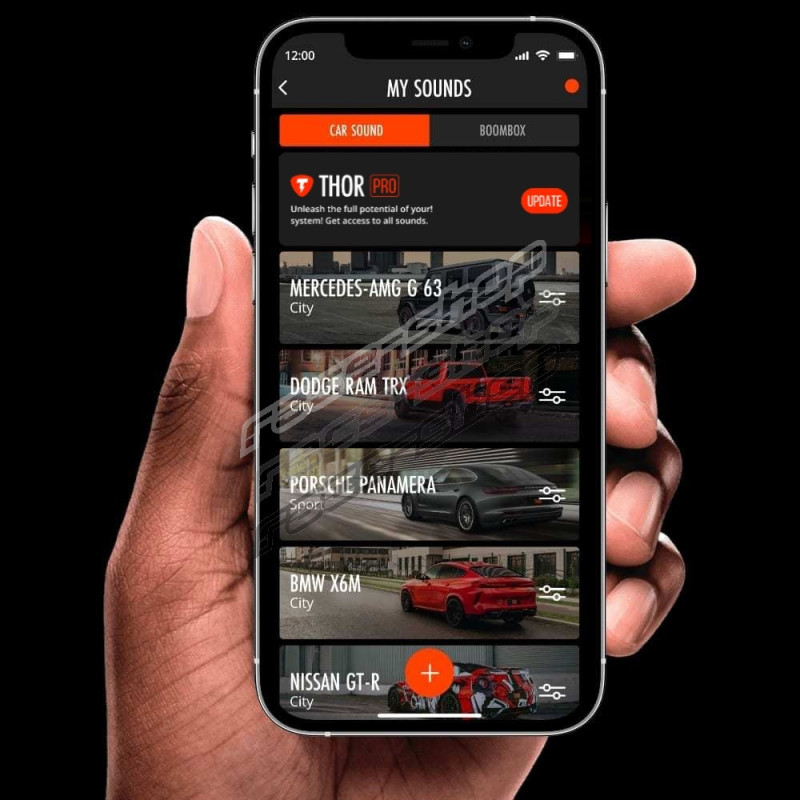

• Sound system controlled via mobile APP (available on App Store or Google Play)
• Choose between 20+ different exhaust sounds of legendary engines
• New sounds added and updated every month

Application:

• ANY vehicle 2005+ (with engine CAN bus)
• Also suitable for electric cars

Scope of delivery:

• THOR STORM speaker (sound generator)
• THOR electronic control unit
• Installation material (wiring, mounting brackets)
• Instructions

Note:

• This product is a universal complete kit, which means that the revision of the sound generator for your vehicle needs to be done by you
• The installation of THOR Electronic exhaust can lead to the expiry of the operating license of your vehicle or to the refusal of a license for your car, according to the current practice of car registration offices. If you have any questions, please contact the responsible licensing authorities.
• Installation INSTRUCTIONS can be found in the product attachments tab
