TURBOSMART PROOPR turbo oil pressure regulator

This is designed for large turbocharger systems and high boost levels where the additional pressure and confidence is required at high boost, high shaft speed and horsepower levels.

The singel outlet design allows for simplicity of plumbing and connection to your single turbocharger system and while it is returnless, inline design it uses a boost reference to create a pressure differential. This pressure differential targets appropriate bearing pressure at low and zero boost pressure to eliminate your turbocharger digesting oil, while also providing increased oil pressure at higher boost levels to provide increased protection and confidence.

Product Features:

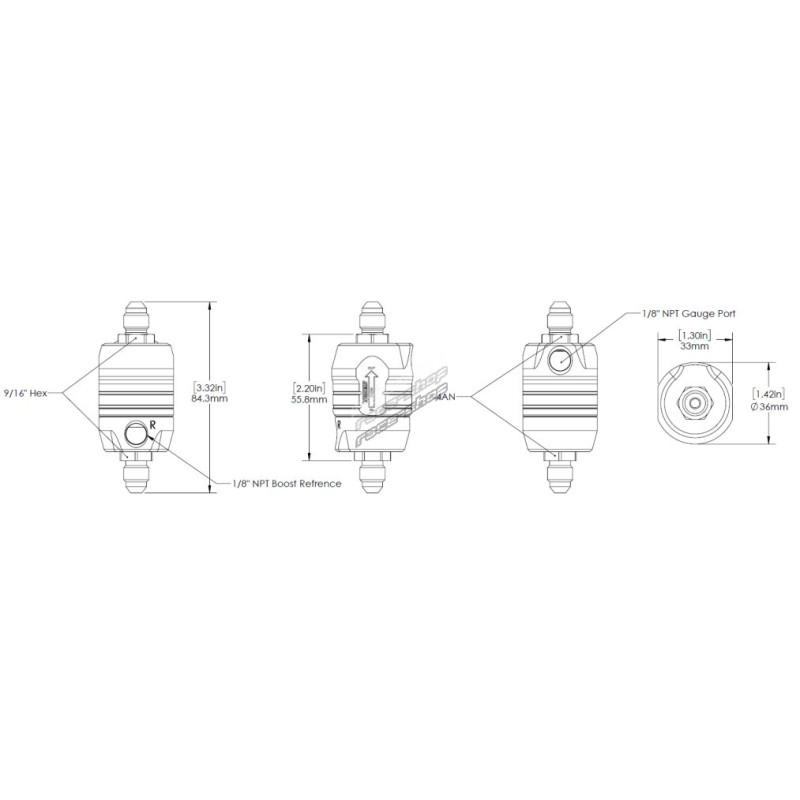

• Aluminum (6262 T6) anodised body and valve
• 1 x 1/8 NPT sensor / gauge port
• 1 x 1/8 NPT boost reference port
• 1 x 4AN Inlet
• 1 x 4AN Outlet
• Inline, return-less design
• Suitable for all engine oils
• Australian Designed and Manufactured

Notes: This solution is designed for large turbocharger systems and high boost levels as found in Pro-Mod and other similar forms of Motorsport where large frame turbochargers and high boost levels are in use.
