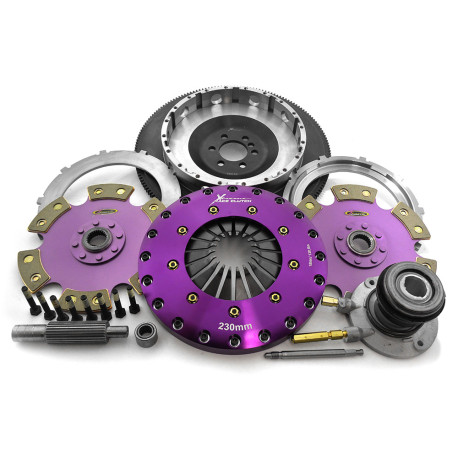

KGM23630-2E Xtreme Performance 230mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel & CSC 1800Nm
Xtreme Clutch delivers expertly engineered, high-performance clutch solutions for the street and track. Trusted by professional race teams worldwide, we provide the ultimate upgrade for your driving experience.
Нов продукт
KGM23630-2E
9337467145069
Препоръчителни продукти
Xtreme Clutch delivers expertly engineered, high-performance clutch solutions for the street and track. Trusted by professional race teams worldwide, we provide the ultimate upgrade for your driving experience.
Xtreme Clutch 230mm twin plate kitThe Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required.
The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.Product Features:
- Torque capacity 1800Nm
- Kit contains everything you need for a successful installation + accessories
- Push type billet alloy cover Low pedal effort
- 4140 Chromoly pressure & intermediate plates
- Chromoly adapter ring
- Low inertia
- Serviceable components
- SFI certified design
| Flat Diaphragm | Rolled Diaphragm | |
| Clamping Force | 1300kg | 1300kg |
| Torque Rating | 1800Nm | 1800Nm |
| Bearing Contact Diameter | 65mm | FLAT BEARING |
| Bearing Load (@ 48mm) | 180kg | 150kg |
| Release Travel Required | 7mm | 7mm |
| Assembly Mass (without flywheel) | 8.30kg | 8.30kg |
| Disc Set Static Mass | 2.25kg | 2.25kg |
| Friction Thickness New | 8mm (0.315") | 8mm (0.315") |
| Friction Thickness Worn | 7.5mm (0.295") | 7.5mm (0.295") |
Tech. Info:
Reference: KGM23630-2E
Weight: 20.41
Note:
Clutch Disc Diameter (mm): 230
Clutch Disc Spline Count: 26
Clutch Disc Spline Diameter (mm): 28.6
Torque (Nm): 1830
Flywheel Step: +3.8mm
Design: Twin Plate
Stage: Multiplate - track use only
Clamp Load: 1350Kg
Recommended for: Motorsport
Ring Gear Tooth count:
Additional information:
230mm Twin Plate
Suitable for:
- Holden/H Series/5.7 i V8/2004.11-2005.12/5665 Petrol 260 kW 354 BHP (2004.11 - 2005.12)
Holden/H Series/VZ | 6.0i V8/2005.11-2006.06/L76 5967 Petrol 260 kW 354 BHP (2005.11 - 2006.06)
Holden/H Series/VE | 6.0i V8/2007.09-2010.09/L76 5967 Petrol 260 kW 354 BHP (2007.09 - 2010.09)
Holden/H Series/VZ | 6.0i V8 4x4/2005.11-2006.07/L76, LS2(364CUV8) 5967 Petrol 260 kW 354 BHP (2005.11 - 2006.07)
Holden/H Series/VZ | 6.0i V8/2005.11-2007.08/L76, LS2(364CUV8) 5967 Petrol 260 kW 354 BHP (2005.11 - 2007.08)
HSV/Senator/VZ | 6.0i V8/2004.10-2006.07/L76, LS2(364CUV8) 5967 Petrol 297 kW 404 BHP (2004.10 - 2006.07)
HSV/Clubsport/VZ | 6.0i V8/2004.10-2006.12/L76, LS2(364CUV8) 5967 Petrol 297 kW 404 BHP (2004.10 - 2006.12)
HSV/Maloo/VZ | 6.0i V8/2004.10-2007.09/L76, LS2(364CUV8) 5967 Petrol 297 kW 404 BHP (2004.10 - 2007.09)
HSV/GTO/VX, VZ | 6.0i V8/2004.10-2007.11/L76, LS2(364CUV8) 5967 Petrol 297 kW 404 BHP (2004.10 - 2007.11)
Chevrolet/Camaro/5.7/1998.07-2002.12/LS1 5665 Petrol 212 kW 288 BHP (1998.07 - 2002.12)
Holden/H Series/VT | 5.7i V8/1999.06-2000.08/LS1 5665 Petrol 220 kW 299 BHP (1999.06 - 2000.08)
Holden/H Series/VT | 5.7i V8/1999.06-2000.10/LS1 5665 Petrol 220 kW 299 BHP (1999.06 - 2000.10)
Holden/H Series/VX | 5.7i V8/2000.09-2002.09/LS1 5665 Petrol 225 kW 306 BHP (2000.09 - 2002.09)
Holden/H Series/VU | 5.7i V8/2000.12-2002.09/LS1 5665 Petrol 225 kW 306 BHP (2000.12 - 2002.09)
Holden/H Series/5.7 i V8/2001.12-2003.01/LS1 5665 Petrol 225 kW 306 BHP (2001.12 - 2003.01)
Holden/H Series/VY | 5.7i V8/2002.09-2003.08/LS1 5665 Petrol 225 kW 306 BHP (2002.09 - 2003.08)
Holden/H Series/VY | 5.7i V8/2003.09-2004.07/LS1 5665 Petrol 225 kW 306 BHP (2003.09 - 2004.07)
Holden/H Series/VY | 5.7i V8/2002.09-2004.08/LS1 5665 Petrol 235 kW 320 BHP (2002.09 - 2004.08)
Holden/H Series/5.7 i V8/2003.01-2003.08/LS1 5665 Petrol 235 kW 320 BHP (2003.01 - 2003.08)
Holden/H Series/5.7 i V8/2003.08-2004.07/LS1 5665 Petrol 235 kW 320 BHP (2003.08 - 2004.07)
Holden/H Series/VY | 5.7i V8/2003.08-2004.08/LS1 5665 Petrol 235 kW 320 BHP (2003.08 - 2004.08)
Holden/H Series/VZ | 5.7i V8/2004.08-2006.01/LS1 5665 Petrol 235 kW 320 BHP (2004.08 - 2006.01)
Holden/H Series/VY | 5.7i V8/2004.08-2006.02/LS1 5665 Petrol 235 kW 320 BHP (2004.08 - 2006.02)
Holden/H Series/VZ | 5.7i V8/2004.09-2005.12/LS1 5665 Petrol 235 kW 320 BHP (2004.09 - 2005.12)
Holden/H Series/5.7 i V8/2004.11-2005.12/LS1 5665 Petrol 235 kW 320 BHP (2004.11 - 2005.12)
Holden/H Series/VY | 5.7i V8/2002.09-2003.08/LS1 5665 Petrol 245 kW 333 BHP (2002.09 - 2003.08)
Holden/H Series/5.7 i V8/2003.08-2004.09/LS1 5665 Petrol 245 kW 333 BHP (2003.08 - 2004.09)
HSV/Senator/VT | 5.7i V8/1997.09-2000.08/LS1 5665 Petrol 250 kW 340 BHP (1997.09 - 2000.08)
HSV/Clubsport/VT | 5.7i V8/1999.07-2000.10/LS1 5665 Petrol 250 kW 340 BHP (1999.07 - 2000.10)
Holden/H Series/VZ | 5.7i V8/2004.09-2006.02/LS1 5665 Petrol 250 kW 340 BHP (2004.09 - 2006.02)
HSV/Clubsport/VX | 5.7i V8/2000.09-2002.09/LS1 5665 Petrol 255 kW 347 BHP (2000.09 - 2002.09)
HSV/Senator/VX | 5.7i V8/2000.09-2002.09/LS1 5665 Petrol 255 kW 347 BHP (2000.09 - 2002.09)
HSV/Maloo/VU | 5.7i V8/2001.03-2002.09/LS1 5665 Petrol 255 kW 347 BHP (2001.03 - 2002.09)
HSV/GTO/V2 | 5.7i V8/2001.03-2003.08/LS1 5665 Petrol 255 kW 347 BHP (2001.03 - 2003.08)
HSV/Clubsport/VY | 5.7i V8/2002.10-2003.08/LS1 5665 Petrol 260 kW 354 BHP (2002.10 - 2003.08)
HSV/Senator/VY | 5.7i V8/2002.10-2003.08/LS1 5665 Petrol 260 kW 354 BHP (2002.10 - 2003.08)
HSV/Maloo/VY | 5.7i V8/2002.10-2003.09/LS1 5665 Petrol 260 kW 354 BHP (2002.10 - 2003.09)
Holden/H Series/5.7 i V8/2004.09-2006.07/LS1 5665 Petrol 260 kW 354 BHP (2004.09 - 2006.07)
Vauxhall/Monaro/VY, VZ | 5.7/2004.03-2005.07/LS1 5665 Petrol 285 kW 387 BHP (2004.03 - 2005.07)
HSV/Clubsport/VY | 5.7i V8/2003.09-2004.09/LS1 5665 Petrol 285 kW 388 BHP (2003.09 - 2004.09)
HSV/GTO/VX, VZ | 5.7 i V8/2003.09-2004.09/LS1 5665 Petrol 285 kW 388 BHP (2003.09 - 2004.09)
HSV/Senator/VY | 5.7i V8/2003.09-2004.09/LS1 5665 Petrol 285 kW 388 BHP (2003.09 - 2004.09)
HSV/Maloo/VY | 5.7i V8/2003.10-2004.09/LS1 5665 Petrol 285 kW 388 BHP (2003.10 - 2004.09)
HSV/GTS/VT | 5.7i V8/2000.04-2000.09/LS1 5665 Petrol 300 kW 408 BHP (2000.04 - 2000.09)
HSV/GTS/VX | 5.7i V8/2000.09-2001.08/LS1 5665 Petrol 300 kW 408 BHP (2000.09 - 2001.08)
HSV/Senator/VX | 5.7i V8/2000.09-2002.09/LS1 5665 Petrol 300 kW 408 BHP (2000.09 - 2002.09)
HSV/GTS/V2| 5.7i V8/2001.03-2004.09/LS1 5665 Petrol 300 kW 408 BHP (2001.03 - 2004.09)
HSV/SV300/VX| 5.7i V8/2001.09-2001.12/LS1 5665 Petrol 300 kW 408 BHP (2001.09 - 2001.12)
HSV/GTS/VY | 5.7i V8/2002.10-2004.09/LS1 5665 Petrol 300 kW 408 BHP (2002.10 - 2004.09)
HSV/SV6000/6.0i V8/2005.08-2006.04/LS2(364CUV8) 5965 Petrol 297 kW 404 BHP (2005.08 - 2006.04)
Vauxhall/Monaro/VY, VZ | 5.7/2004.01-2004.10/Y 57 XE 5665 Petrol 245 kW 333 BHP (2004.01 - 2004.10)
Vauxhall/Monaro/VY, VZ | 5.7/2005.01-2007.04/Y 57 XE 5665 Petrol 257 kW 349 BHP (2005.01 - 2007.04) ,
- Напишете отзив
Не намерихте отговора?
Задайте въпрос Имате въпрос? Намерете отговора в дискусията.
| Марка | модел | Type | код мотор |
|---|---|---|---|
| Chevrolet | Camaro | 5.7 | LS1 5665 Petrol 212 kW 288 BHP (1998.07 - 2002.12) |
| HSV | Clubsport | VT 5.7i V8 | LS1 5665 Petrol 250 kW 340 BHP (1999.07 - 2000.10) |
| HSV | Clubsport | VX 5.7i V8 | LS1 5665 Petrol 255 kW 347 BHP (2000.09 - 2002.09) |
| HSV | Clubsport | VY 5.7i V8 | LS1 5665 Petrol 260 kW 354 BHP (2002.10 - 2003.08) |
| HSV | Clubsport | VY 5.7i V8 | LS1 5665 Petrol 285 kW 388 BHP (2003.09 - 2004.09) |
| HSV | Clubsport | VZ 6.0i V8 | L76, LS2(364CUV8) 5967 Petrol 297 kW 404 BHP (2004.10 - 2006.12) |
| HSV | GTO | V2 5.7i V8 | LS1 5665 Petrol 255 kW 347 BHP (2001.03 - 2003.08) |
| HSV | GTO | VX, VZ 5.7 i V8 | LS1 5665 Petrol 285 kW 388 BHP (2003.09 - 2004.09) |
| HSV | GTO | VX, VZ 6.0i V8 | L76, LS2(364CUV8) 5967 Petrol 297 kW 404 BHP (2004.10 - 2007.11) |
| HSV | GTS | V2| 5.7i V8 | LS1 5665 Petrol 300 kW 408 BHP (2001.03 - 2004.09) |
| HSV | GTS | VT 5.7i V8 | LS1 5665 Petrol 300 kW 408 BHP (2000.04 - 2000.09) |
| HSV | GTS | VX 5.7i V8 | LS1 5665 Petrol 300 kW 408 BHP (2000.09 - 2001.08) |
| HSV | GTS | VY 5.7i V8 | LS1 5665 Petrol 300 kW 408 BHP (2002.10 - 2004.09) |
| HSV | Maloo | VU 5.7i V8 | LS1 5665 Petrol 255 kW 347 BHP (2001.03 - 2002.09) |
| HSV | Maloo | VY 5.7i V8 | LS1 5665 Petrol 260 kW 354 BHP (2002.10 - 2003.09) |
| HSV | Maloo | VY 5.7i V8 | LS1 5665 Petrol 285 kW 388 BHP (2003.10 - 2004.09) |
| HSV | Maloo | VZ 6.0i V8 | L76, LS2(364CUV8) 5967 Petrol 297 kW 404 BHP (2004.10 - 2007.09) |
| HSV | SV300 | VX| 5.7i V8 | LS1 5665 Petrol 300 kW 408 BHP (2001.09 - 2001.12) |
| HSV | SV6000 | 6.0i V8 | LS2(364CUV8) 5965 Petrol 297 kW 404 BHP (2005.08 - 2006.04) |
| HSV | Senator | VT 5.7i V8 | LS1 5665 Petrol 250 kW 340 BHP (1997.09 - 2000.08) |
| HSV | Senator | VX 5.7i V8 | LS1 5665 Petrol 255 kW 347 BHP (2000.09 - 2002.09) |
| HSV | Senator | VX 5.7i V8 | LS1 5665 Petrol 300 kW 408 BHP (2000.09 - 2002.09) |
| HSV | Senator | VY 5.7i V8 | LS1 5665 Petrol 260 kW 354 BHP (2002.10 - 2003.08) |
| HSV | Senator | VY 5.7i V8 | LS1 5665 Petrol 285 kW 388 BHP (2003.09 - 2004.09) |
| HSV | Senator | VZ 6.0i V8 | L76, LS2(364CUV8) 5967 Petrol 297 kW 404 BHP (2004.10 - 2006.07) |
| Holden | H Series | 5.7 i V8 | 5665 Petrol 260 kW 354 BHP (2004.11 - 2005.12) |
| Holden | H Series | 5.7 i V8 | LS1 5665 Petrol 225 kW 306 BHP (2001.12 - 2003.01) |
| Holden | H Series | 5.7 i V8 | LS1 5665 Petrol 235 kW 320 BHP (2003.01 - 2003.08) |
| Holden | H Series | 5.7 i V8 | LS1 5665 Petrol 235 kW 320 BHP (2003.08 - 2004.07) |
| Holden | H Series | 5.7 i V8 | LS1 5665 Petrol 235 kW 320 BHP (2004.11 - 2005.12) |
| Holden | H Series | 5.7 i V8 | LS1 5665 Petrol 245 kW 333 BHP (2003.08 - 2004.09) |
| Holden | H Series | 5.7 i V8 | LS1 5665 Petrol 260 kW 354 BHP (2004.09 - 2006.07) |
| Holden | H Series | VE 6.0i V8 | L76 5967 Petrol 260 kW 354 BHP (2007.09 - 2010.09) |
| Holden | H Series | VT 5.7i V8 | LS1 5665 Petrol 220 kW 299 BHP (1999.06 - 2000.08) |
| Holden | H Series | VT 5.7i V8 | LS1 5665 Petrol 220 kW 299 BHP (1999.06 - 2000.10) |
| Holden | H Series | VU 5.7i V8 | LS1 5665 Petrol 225 kW 306 BHP (2000.12 - 2002.09) |
| Holden | H Series | VX 5.7i V8 | LS1 5665 Petrol 225 kW 306 BHP (2000.09 - 2002.09) |
| Holden | H Series | VY 5.7i V8 | LS1 5665 Petrol 225 kW 306 BHP (2002.09 - 2003.08) |
| Holden | H Series | VY 5.7i V8 | LS1 5665 Petrol 225 kW 306 BHP (2003.09 - 2004.07) |
| Holden | H Series | VY 5.7i V8 | LS1 5665 Petrol 235 kW 320 BHP (2002.09 - 2004.08) |
| Holden | H Series | VY 5.7i V8 | LS1 5665 Petrol 235 kW 320 BHP (2003.08 - 2004.08) |
| Holden | H Series | VY 5.7i V8 | LS1 5665 Petrol 235 kW 320 BHP (2004.08 - 2006.02) |
| Holden | H Series | VY 5.7i V8 | LS1 5665 Petrol 245 kW 333 BHP (2002.09 - 2003.08) |
| Holden | H Series | VZ 5.7i V8 | LS1 5665 Petrol 235 kW 320 BHP (2004.08 - 2006.01) |
| Holden | H Series | VZ 5.7i V8 | LS1 5665 Petrol 235 kW 320 BHP (2004.09 - 2005.12) |
| Holden | H Series | VZ 5.7i V8 | LS1 5665 Petrol 250 kW 340 BHP (2004.09 - 2006.02) |
| Holden | H Series | VZ 6.0i V8 4x4 | L76, LS2(364CUV8) 5967 Petrol 260 kW 354 BHP (2005.11 - 2006.07) |
| Holden | H Series | VZ 6.0i V8 | L76, LS2(364CUV8) 5967 Petrol 260 kW 354 BHP (2005.11 - 2007.08) |
| Holden | H Series | VZ 6.0i V8 | L76 5967 Petrol 260 kW 354 BHP (2005.11 - 2006.06) |
| Vauxhall | Monaro | VY, VZ 5.7 | LS1 5665 Petrol 285 kW 387 BHP (2004.03 - 2005.07) |
| Vauxhall | Monaro | VY, VZ 5.7 | Y 57 XE 5665 Petrol 245 kW 333 BHP (2004.01 - 2004.10) |
| Vauxhall | Monaro | VY, VZ 5.7 | Y 57 XE 5665 Petrol 257 kW 349 BHP (2005.01 - 2007.04) |
