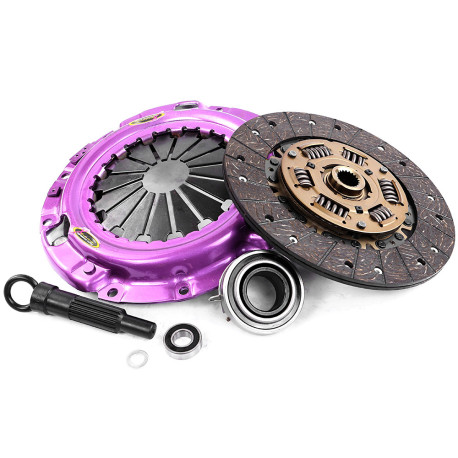

KMI23014-1A Clutch Kit Xtreme Performance Heavy Duty Organic 410Nm 900kg (20%)

Xtreme Performance - sprung organic kit /-1ARecommended for: Street use in vehicles with minor engine modifications.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

Specifications:

• Torque capacity 410Nm
• Clamp load 900kg 20% Increased over standard
• Organic Friction Discs
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

Xtreme PerformanceAt Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KMI23014-1A

Weight: 6.71

Note:

Clutch Disc Diameter (mm): 225
Clutch Disc Spline Count: 20
Clutch Disc Spline Diameter (mm): 22.4
Torque (Nm): 410
Flywheel Step: -15.5mm/.610""
Design: Single Plate
Stage: Stage 1
Clamp Load: 900Kg (20% inc.)
Recommended for: Street Performance & Towing - Stage 1
Ring Gear Tooth count:
Additional information:

Single Plate

Suitable for:

- Mitsubishi/Galant/Gen. VII | 2.0 GLSTD (E57A)/1992.11-1996.08/4D68 T 1998 Diesel 66 kW 90 BHP (1992.11 - 1996.08)
Mitsubishi/Lancer/EVO I (CD9A)/1992.10-1993.12/4G63 Turbo 1997 Petrol 184 kW 250 BHP (1992.10 - 1993.12)
Mitsubishi/Lancer/EVO II (CE9A)/1994.01-1995.07/4G63 Turbo 1997 Petrol 192 kW 261 BHP (1994.01 - 1995.07)
Mitsubishi/Lancer/EVO III (CE9A)/1995.08-1996.07/4G63 Turbo 1997 Petrol 198 kW 269 BHP (1995.08 - 1996.07)
Mitsubishi/Galant/Gen. VI | 2.0 GTI 16V Cat 4WD (E38A. E39A. E33A)/1990.10-1993.03/4G63-T (DOHC 16V) 1997 Petrol 148 kW 201 BHP (1990.10 - 1993.03)
Mitsubishi/Lancer/1.8 EVO AWD/1992.11-1994.08/4G93 (DOHC 16V) 1834 Petrol 189 kW 257 BHP (1992.11 - 1994.08)
Mitsubishi/Lancer/1.8 i Turbo AWD (CD5A)/1992.11-1996.07/4G93T 1834 Petrol 141 kW 192 BHP (1992.11 - 1996.07)
Mitsubishi/Galant/Gen. VII | 2.0 V6-24 (E64A. E54A)/1992.11-1996.08/6A12 1999 Petrol 110 kW 150 BHP (1992.11 - 1996.08)
Mitsubishi/GTO/3.0 AWD/1989.06-1996.04/6G72 (DOHC 24V) 2972 Petrol 165 kW 224 BHP (1989.06 - 1996.04) ,
