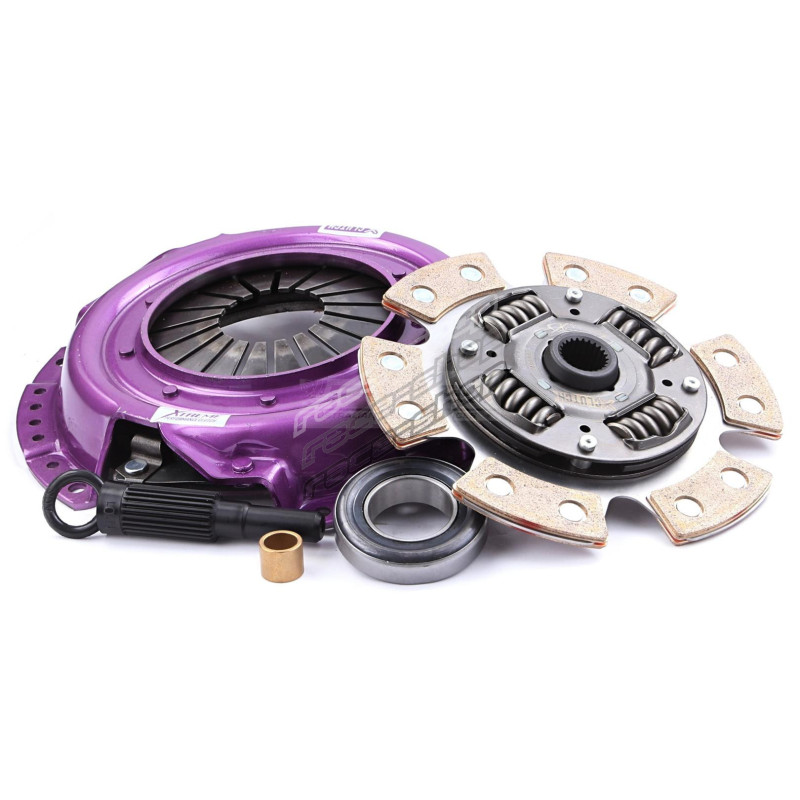

KNI23001-1B Clutch Kit Xtreme Performance Heavy Duty Sprung Ceramic 530Nm 750kg (50%)

Xtreme Performance - sprung ceramic kit /-1BRecommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

Specifications:

• Torque capacity 530Nm
• Clamp load 750kg 50% Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

Xtreme PerformanceAt Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KNI23001-1B

Weight: 7.71

Note:

Clutch Disc Diameter (mm): 225
Clutch Disc Spline Count: 24
Clutch Disc Spline Diameter (mm): 25.5
Torque (Nm): 530
Flywheel Step: 0
Design: Single Plate
Stage: Stage 2
Clamp Load: 750Kg (50% inc.)
Recommended for: Track - Stage 2
Ring Gear Tooth count:
Additional information:

Single Plate

Suitable for:

- Nissan/260Z/S30 | 2.6 2+2/1974.05-1979.12/L26 2565 Petrol 119 kW 162 BHP (1974.05 - 1979.12)
Nissan/280ZX,ZXT/S130 | 2.8/1978.10-1983.06/L28E 2753 Petrol 103 kW 140 BHP (1978.10 - 1983.06)
Nissan/280ZX,ZXT/S130 | 2.8/1980.02-1982.09/L28E 2753 Petrol 108 kW 147 BHP (1980.02 - 1982.09)
Nissan/280ZX,ZXT/S130 | 2.8/1982.01-1984.02/L28E 2753 Petrol 110 kW 150 BHP (1982.01 - 1984.02)
Nissan/Bluebird/910 | 1.8/1980.01-1983.12/L18S, Z18S 1770 Petrol 65kW 88 BHP (1980.01 - 1983.12)
Nissan/Cabstar/F22 | 2.2/1984.10-1992.06/Z22 2188 Petrol 71 kW 97 BHP (1984.10 - 1992.06)
Nissan/Cabstar/F22 | 2.5 D/1983.02-1990.12/SD25 2494 Petrol 53 kW 72 BHP (1983.02 - 1990.12)
Nissan/Cedric/430 | 2.8/1980.01-1983.02/L28 2753 Petrol 108 kW 147 BHP (1980.01 - 1983.02)
Nissan/Laurel/C32 | 2.8 D/1985.01-1989.12/RD28 2826 Diesel 66 kW 90 BHP (1985.01 - 1989.12)
Nissan/Patrol/K260 | 2.8/1986.05-1990.06/L28 2753 Petrol 88 kW 120 BHP (1986.05 - 1990.06)
Nissan/Pickup/720 | 1.8/1983.01-1986.03/L18 1770 Petrol 59 kW 80 BHP (1983.01 - 1986.03)
Nissan/Pickup/720 | 2.2 4WD/1983.04-1986.03/Z22 2188 Petrol 71 kW 97 BHP (1983.04 - 1986.03)
Nissan/Pickup/720 | 2.2 D/1982.01-1984.01/SD22 2164 Diesel 47 kW 64 BHP (1982.01 - 1984.01)
Nissan/Navara/D21 | 2.0/1985.09-1988.07/Z20 1952 Petrol 64 kW 87 BHP (1985.09 - 1988.07)
Nissan/Navara/D21 | 2.4 4WD/1986.03-1992.04/Z24i 2389 Petrol 74 kW 101 BHP (1986.03 - 1992.04)
Nissan/Skyline/R34 | 2.0/1998.06-2000.07/RB20DE 1998 Petrol 114 kW 155 BHP (1998.06 - 2000.07)
Nissan/Skyline/R32 | 2.0/1990.01-1993.01/RB20DE 1998 Petrol 116 kW 158 BHP (1990.01 - 1993.01)
Nissan/Skyline/R32 | 2.0/1989.03-1993.06/RB20DE 1998 Petrol 114 kW 155 BHP (1989.03 - 1993.06)
Nissan/Skyline/R33 | 2.0/1993.07-1998.05/RB20E 1998 Petrol 96 kW 131 BHP (1993.07 - 1998.05)
Nissan/Urvan/E23 | 2.0/1982.12-1998.11/Z20 1952 Petrol 64 kW 87 BHP (1982.12 - 1998.11)
Nissan/Urvan/E23 | 2.0/1981.07-1982.11/H20 1982 Petrol 55 kW 75 BHp (1981.07 - 1982.11)
Nissan/Urvan/E24 | 2.0/1987.02-1994.07/Z20S 1952 Petrol 66 kW 90 BHP (1987.02 - 1994.07)
Nissan/Urvan/E24 | 2.0/1986.06-1994.09/Z20S 1952 Petrol 65 kW 88 BHP (1986.06 - 1994.09)
Nissan/Laurel/C34 | 2.0/1990.07-1993.01/RB20E 1998 Petrol 114 kW 155 BHP (1990.07 - 1993.01)
Nissan/Laurel/C34 | 2.0/1993.01-1997.06/RB20E 1998 Petrol 92 kW 125 BHP (1993.01 - 1997.06)
Nissan/Leopard/F30 | 2.8/1981.06-1984.09/L28E 2753 Petrol 106 kW 144 BHP (1981.06 -1984.09)
Nissan/Skyline/R31 | 2.0/1985.08-1990.05/RB20DE 1998 Petrol 116 kW 158 BHP (1985.08 - 1990.05)
Nissan/Skyline/R30 |2.4/1981.03-1986.06/L24E 2393 Petrol 103 kW 140 BHP (1981.03 - 1986.06)
Nissan/Skyline/R31 | 2.0/1985.08-1989.04/RB20E 1998 Petrol 96 kW 131 BHP (1985.08 - 1989.04)
Nissan/Skyline/R31 | 2.0 Turbo/1987.01-1990.01/RB20DET 1998 Petrol 140 kW 190 BHP (1987.01 - 1990.01)
Nissan/Skyline/R32 | 2.0/1989.03-1993.06/RB20E 1998 Petrol 92 kW 125 BHP (1989.03 - 1993.06)
Nissan/Skyline/R32 | 2.0 4x4/1989.03-1993.06/RB20DE 1998 Petrol 114 kW 155 BHP (1989.03 - 1993.06)
Nissan/Skyline/R31 | 2.0 Turbo/1985.08-1990.05/RB20DET 1998 Petrol 160 kW 218 BHP (1985.08 - 1990.05)
Nissan/Skyline/R30 |2.4/1982.08-1983.11/L24E 2393 Petrol 94 kW 128 BHP (1982.08 - 1983.11) ,
