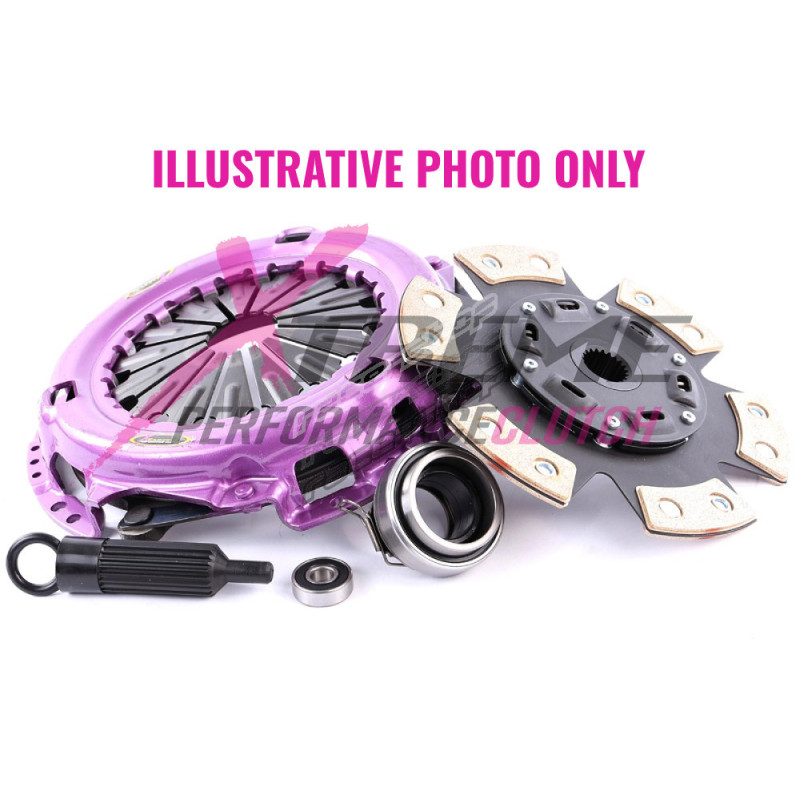

KSU23008-1B Clutch Kit Xtreme Performance Heavy Duty Sprung Ceramic 500Nm 750kg (40%)

Xtreme Performance - sprung ceramic kit /-1BRecommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

Specifications:

• Torque capacity 500Nm
• Clamp load 750kg 40% Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

Xtreme PerformanceAt Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KSU23008-1B

Weight: 5.97

Note:

Clutch Disc Diameter (mm): 225
Clutch Disc Spline Count: 24
Clutch Disc Spline Diameter (mm): 25.2
Torque (Nm): 500
Flywheel Step: Flat
Design: Single Plate
Stage: Stage 2
Clamp Load: 750KG (40% inc.)
Recommended for: Track - Stage 2
Ring Gear Tooth count:
Additional information:

Single Plate

Suitable for:

- Subaru/Impreza/2.0 i R AWD (GG9)/2005.09-2007.06/EJ20, EJ204 1994 Petrol 118 kW 160 BHP (2005.09 - 2007.06)
Subaru/Impreza/2.0 AWD (GG9)/2000.12-2007.12/EJ201 1994 Petrol 92 kW 125 BHP (2000.12 - 2007.12)
Subaru/Impreza/2.0 i AWD (GD9)/2000.12-2009.06/EJ201 1994 Petrol 92 kW 125 BHP (2000.12 - 2009.06)
Subaru/Forester/2.0 AWD (SF5)/1997.08-2002.09/EJ202 1994 Petrol 90 kW 122 BHP (1997.08 - 2002.09)
Subaru/Forester/2.0 AWD (SF5)/1998.06-2002.09/EJ202 1994 Petrol 92 kW 125 BHP (1998.06 - 2002.09)
Subaru/Impreza/2.0 R AWD (GH7)/2008.01-2012.03/EJ204 1994 Petrol 110 kW 150 BHP (2008.01 - 2012.03)
Subaru/Impreza/2.0 i AWD (GE7)/2011.01-/EJ204 1994 Petrol 110 kW 150 BHP (2011.01 -)
Subaru/Impreza/2.0 i R AWD (GD9)/2005.09-2007.03/EJ204 1994 Petrol 118 kW 160 BHP (2005.09 - 2007.03)
Subaru/Legacy/2.5 AWD (BE9)/1998.10-2003.08/EJ25 2457 Petrol 115 kW 156 BHP (1998.10 - 2003.08)
Subaru/Legacy/2.5 AWD (BH9)/1998.12-2003.08/EJ25 2457 Petrol 115 kW 156 BHP (1998.12 - 2003.08)
Subaru/Outback/2.5 AWD (BH9)/2000.10-2003.08/EJ25 2457 Petrol 115 kW 156 BHP (2000.10 - 2003.08)
Subaru/Legacy Outback/2.5 (BG9)/1996.01-1999.12/EJ25D 2457 Petrol 110 kW 150 BHP (1996.01 - 1999.12)
Subaru/Legacy Outback/2.5 (BP9)/1996.09-1998.10/EJ25D 2457 Petrol 115 kW 156 BHP (1996.09 - 1998.10) ,
