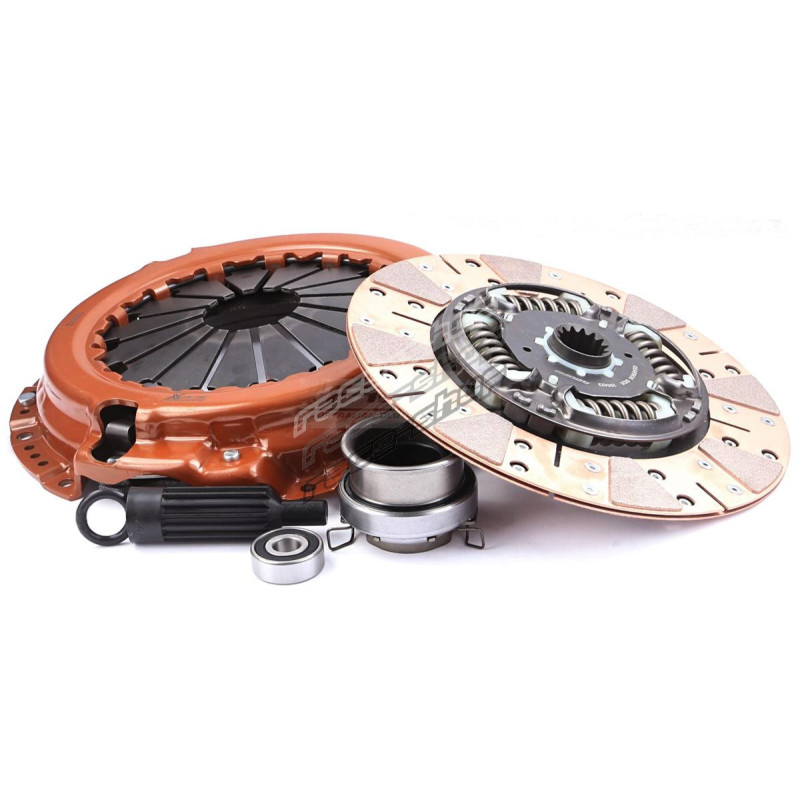

KTY28023-1C Clutch Kit Xtreme Outback Heavy Duty Cushioned Ceramic 820Nm 900Kg (40%)

Xtreme Outback - Heavy duty cushioned ceramic kit /-1CRecommended for: Motorsport Applications

Xtreme Outback Ceramic upgrades have been designed to offer the ultimate in heat capacity for single plate upgrades and are designed specifically for motorsport applications such as endurance rally events and time trials. Available in Sprung Ceramic and Cushioned Ceramic, there are a wide variety of options to choose from depending on the vehicle use.

Specifications:

• Torque capacity 820Nm
• Clamp load 900Kg 40% Increased over standard
• Cushioned Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

Xtreme OutbackDesigned and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.

Cushioned ceramic friction discs are similar to the sprung ceramic kits in that they have a sprung hub to absorb shock loading, but also have a small amount of cushioning betwene the two friction surfaces on the disc giving them better pedal modulation. These kits are designed for low speed trial where pedal feel is important but where the high temperature capacity of a ceramic disc is also beneficial.

What's in the Box?

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KTY28023-1C

Weight: 12.84

Note:

Clamp Load: 900Kg (40% inc.)
Flywheel Step: +0.5mm
Clutch Disc Diameter (mm): 275
Clutch Disc Spline Count: 14
Clutch Disc Spline Diameter (mm): 32,4
Recommended for: Low Speed Trial - Stage 2
Design: Single Plate
Stage: Stage 2

Suitable for:

- Toyota/Land Cruiser 70/4.5 4x4 (FZJ75. FZJ75RV)/1992.08-1999.11/1FZ-FE 4477 Petrol 158 kW 215 BHP (1992.08 - 1999.11)
Toyota/Land Cruiser 70/4.5 MPFi 4x4 (FZJ79. FZJ79R)/1990.11-2007.11/1FZ-FE 4477 Petrol 165 kW 224 BHP (1990.11 - 2007.11)
Toyota/Land Cruiser 70/4.5 MPFi 4x4 (FZJ78. FZJ70. FZJ78R. FZJ79)/1992.08-2009.06/1FZ-FE 4477 Petrol 165 kW 224 BHP (1992.08 - 2009.06) ,
