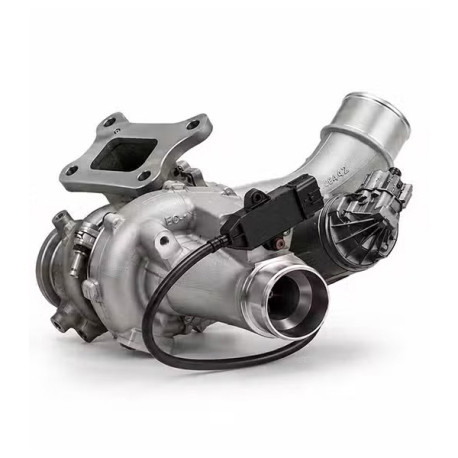

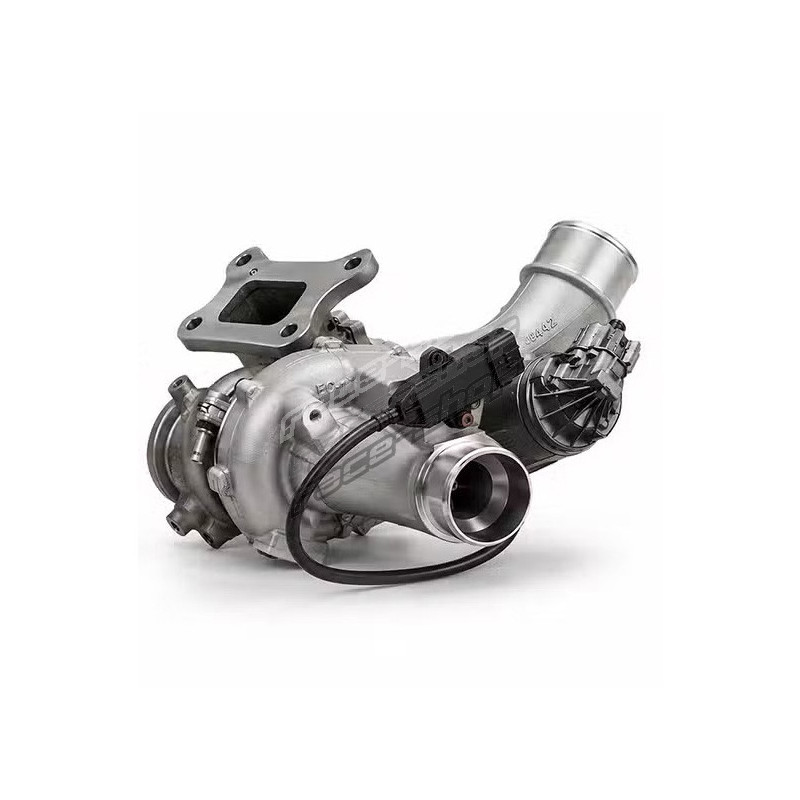

Garrett 959783-5001S PowerMax RIGHT Turbocharger for Infiniti Q50 Q60 3.0L (16+)

Performance-enhanced turbocharger — a direct-fit Garrett PowerMax upgrade for Infiniti Q50 and Q60 models equipped with the 3.0L VR30DDTT twin-turbo V6 engine.

The Garrett PowerMax turbocharger kit is designed as a direct replacement for the original Garrett turbochargers, retaining the factory mounting points and connections while providing increased airflow and greater performance potential.

Both turbochargers are supplied as a complete matched kit with calibrated electronic actuators. The direct-fit design allows installation without fabrication while maintaining OEM-style integration, durability and drivability.

Compared with the original turbochargers, the PowerMax units provide approximately 12% greater compressor airflow and support up to 560 BHP / 412 kW. ECU calibration is required to fully utilise the additional airflow and performance capability.

Specifications

• Vehicle: Infiniti Q50 / Q60 3.0L VR30DDTT Twin-Turbo V6
• Supported power: up to 560 BHP / 412 kW
• Compressor flow increase: +12% compared with OEM
• Turbocharger model: MGT1446Z
• Compressor inducer: 36 mm
• Compressor exducer: 46 mm
• Turbine inducer: 39 mm
• Turbine exducer: 36 mm
• Actuator: electronic
• Wastegate: internal
• Fitment: direct-fit, no fabrication required

Fits & compatible parts

• Infiniti Q50: 2016-2024 Red Sport 400
• Infiniti Q50: 2016-2024 Sport / Luxe / Sensory
• Infiniti Q60: 2017-2022 3.0t models
• Nissan Skyline: 2019+ GT Type SP
• Nissan Skyline: 2019+ 400R
• Kit part number: 959783-5001S
• LH turbocharger: 955599-5001S
• RH turbocharger: 955560-5001S

Features

• Supports up to 560 BHP / 412 kW
• Approximately 12% increased compressor airflow compared with the OEM turbochargers
• Direct-fit bolt-on design using the original mounting points and connections
• Complete matched LH and RH turbocharger kit
• Calibrated electronic actuators for straightforward integration
• Improved airflow, power potential and throttle response
• Engineered to OEM-level standards for durability, reliability and long-term performance
• No fabrication required for installation
• This product contains only RIGHT turbocharger

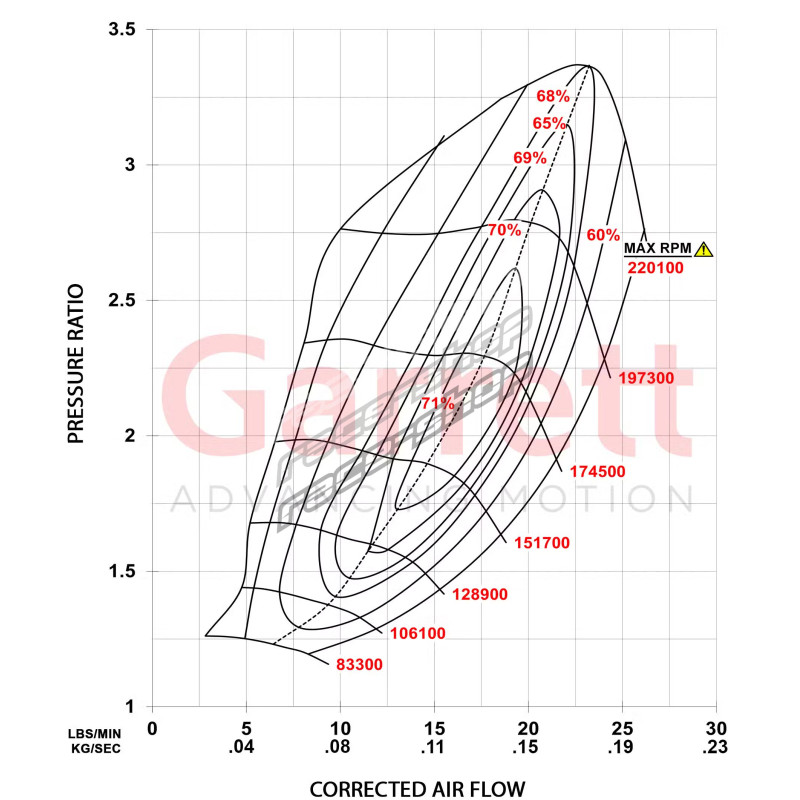

The maximum specified turbocharger speed is 220,100 RPM. Operation above this speed may result in turbocharger damage or premature failure.
