GARRETT 836033-5002S TURBOCHARGER GT3582R W/O HOUSING KIT

Ball bearing.

Oil & Water cooled bearign system.

Upgrade turbocharger for GT3071R non-wastegated ball-bearing turbocharger; turbine housing flanges are outline interchangeable

Ideal for medium displacement engines making up to 600 HP

Turbine housing option available.

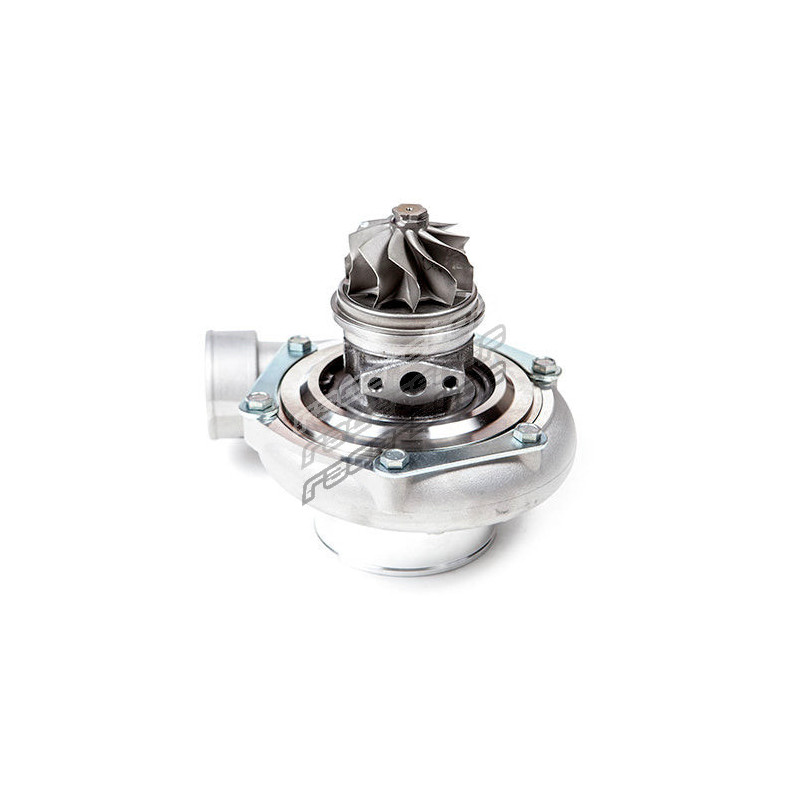

Note: The 836033-5002S GT3582R is a customizable Garrett ball bearing GT turbo that is packaged without the turbine housing. (It includes a CHRA and compressor housing.)

• Turbo Part Number | Model | Turbine side | Compressor side
• New Part | Old Part | O.D.mm | I.D.mm | TRIM | A/R | O.D.mm | I.D.mm | TRIM | A/R
• 836033-5002S | 815113-5002S | GT3582R | 68.0 | 62.0 | 84 | w/t | 82.0 | 61.4 | 56 | .70

HORSEPOWER 400HP - 600HP

DISPLACEMENT 2.0L - 4.5L

C.H.R.A. Part Number

• New Part CHRA | Old Part CHRA
• 836005-5003S | 706451-5005S

Applicable Garrett P/N's:

TBO -  815113-0002

CHRA - 706451-0005

GT35 TURBINE HOUSING OPTIONS

• PART NUMBER | A/R | TYPE
• 740902-0006 | 0.63 | Free Float
• 740902-0005 | 0.82 | Free Float
• 740902-0004 | 1,06 | Free Float
• TURBINE HOUSING OPTIONS (OUTLET WITH V CLAMP)
• PART NUMBER | A/R | TYPE
• 740902-0012 | 0.63 | Free Float
• 740902-0011 | 0.82 | Free Float
• 740902-0010 | 1,06 | Free Float
• TURBINE HOUSING OPTIONS - STAINLESS STEEL (V CLAMP)
• PART NUMBER | A/R | TYPE
• 740902-0021 | 0.61 | Free Float
• 740902-0020 | 0.83 | Free Float
• 740902-0019 | 1,01 | Free Float
• TURBINE HOUSING OPTIONS - HI SIL (T4 - V CLAMP)
• PART NUMBER | A/R | TYPE
• 774301-0012 | 0.63 | Free Float
• 774301-0011 | 0.82 | Free Float
• 774301-0010 | 1,06 | Free Float
• TURBINE HOUSING OPTIONS (T3 - 5-BOLTS)
• PART NUMBER | A/R | TYPE
• 771300-0003 | 0.63 | Wastegated
• 771300-0002 | 0.82 | Wastegated

Product category: Turbocharger
