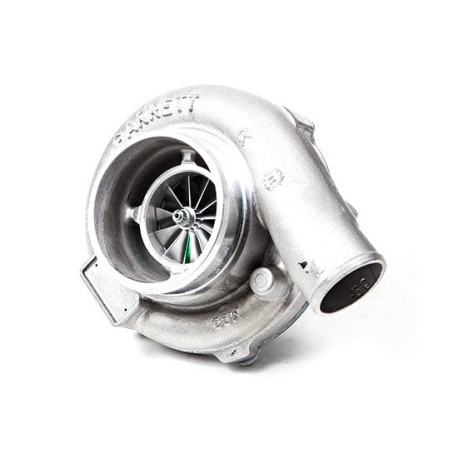

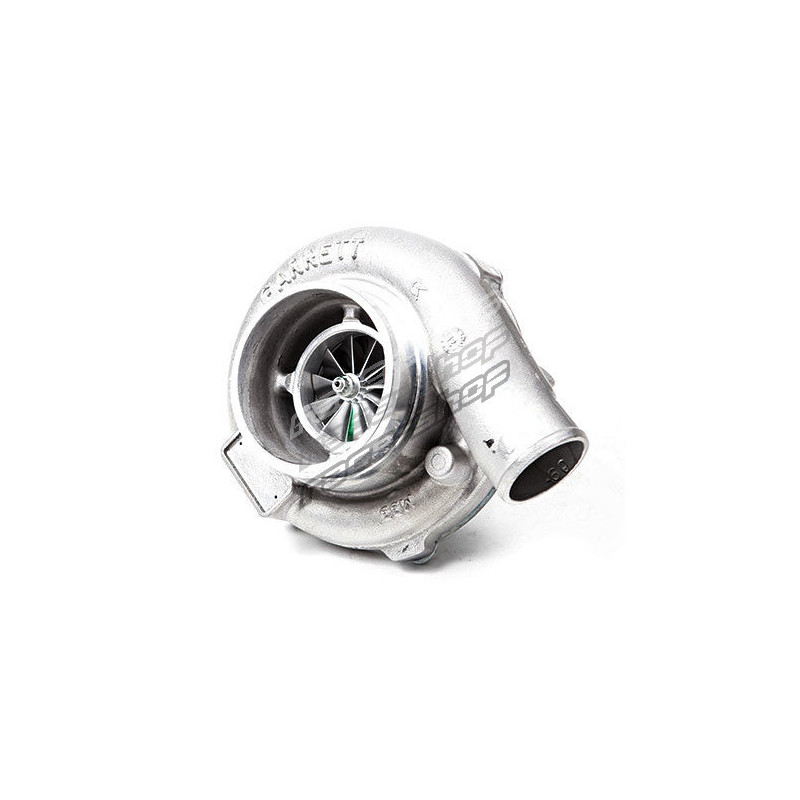

GARRETT 836028-5003S TURBOCHARGER GT3076R W/O HOUSING KIT

Ball bearing.

Oil & Water cooled bearign system.

Upgrade turbocharger for GT3071R non-wastegated ball-bearing turbocharger; turbine housing flanges are outline interchangeable

Ideal for medium displacement engines making up to 525 hp

Turbine housing option available.

Note: The 700382-0012 GT3076R is a customizable Garrett ball bearing GT turbo that is packaged without the turbine housing. (It includes a CHRA and compressor housing.)

• Turbo Part Number | Model | Turbine side | Compressor side
• New Part | Old Part | O.D.mm | I.D.mm | TRIM | A/R | O.D.mm | I.D.mm | TRIM | A/R
• 836028-5003S | 700382-5012S | GT3076R | 60.0 | 55.0 | 84 | w/t | 76.2 | 57.0 | 56 | .60

HORSEPOWER 310HP - 525HP

DISPLACEMENT 2.0L - 3.0L

C.H.R.A. Part Number

• New Part CHRA | Old Part CHRA
• 836000-5003S | 700177-5007S

Applicable Garrett P/N's:

Applicable Garrett alternative numbers

TBO -  700382-0012

CHRA - 700177-0007

TURBINE HOUSING OPTIONS (O/V T3 / 4-Bolted )

• PART NUMBER | A/R | TYPE
• 740902-0003 | 0.63 | Free Float
• 740902-0002 | 0.82 | Free Float
• 740902-0001 | 1.06 | Free Float
• TURBINE HOUSING OPTIONS (O/V T3 / V-Band)
• PART NUMBER | A/R | TYPE
• 740902-0009 | 0.63 | Free Float
• 740902-0008 | 0.82 | Free Float
• 740902-0007 | 1.06 | Free Float
• TURBINE HOUSING OPTIONS Hi Sil (O/V T4 / V-Band )
• PART NUMBER | A/R | TYPE
• 740902-0015 | 0.63 | Free Float
• 740902-0014 | 0.82 | Free Float
• 740902-0013 | 1.06 | Free Float
• TURBINE HOUSING OPTIONS Ni-Resist ( Div V-Band / V-Band)
• PART NUMBER | A/R | TYPE
• 740902-0024 | 0.61 | Free Float
• 740902-0023 | 0.83 | Free Float
• 740902-0022 | 1.01 | Free Float
• TURBINE HOUSING OPTIONS Ni-Resist ( Div T3 / V-Band )
• PART NUMBER | A/R | TYPE
• 740902-0030 | 0.61 | Free Float
• 740902-0029 | 0.83 | Free Float
• 740902-0028 | 1.01 | Free Float
• TURBINE HOUSING OPTIONS Ni-Resist ( V-Band / V-Band)
• PART NUMBER | A/R | TYPE
• 740902-0036 | 0.61 | Free Float
• 740902-0035 | 0.83 | Free Float
• 740902-0034 | 1.01 | Free Float

Product category: Turbocharger
